Power Steering Pump - Description






DESCRIPTION

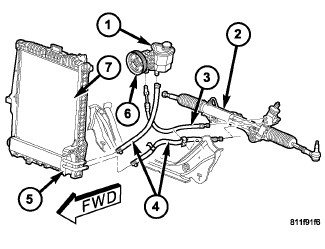

The pump (1) is connected to the steering gear (2) via the pressure hose (3) and the return hoses (4). The pump shaft has a pressed-on pulley (6) that is belt driven by the crankshaft pulley.





The power steering oil cooler (5) is mounted to the front lower part of the radiator (7).

NOTE: Power steering pumps are not interchangeable with pumps installed on other vehicles.
