Power Steering Cooler - Removal






REMOVAL





1. Siphon the power steering system.
2. Raise and support the vehicle.

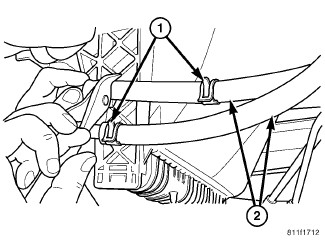

3. Disconnect the hose clamps (1).
4. Disconnect the hoses (2) at the cooler.

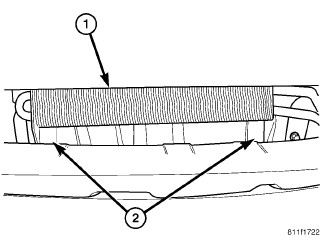

5. Remove the cooler mounting bolts (2).

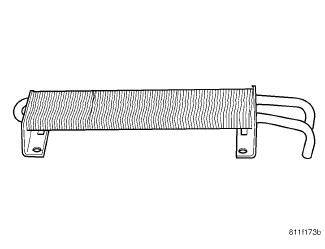

6. Remove the cooler.
