Junction Block C2 (Instrument Panel Side)

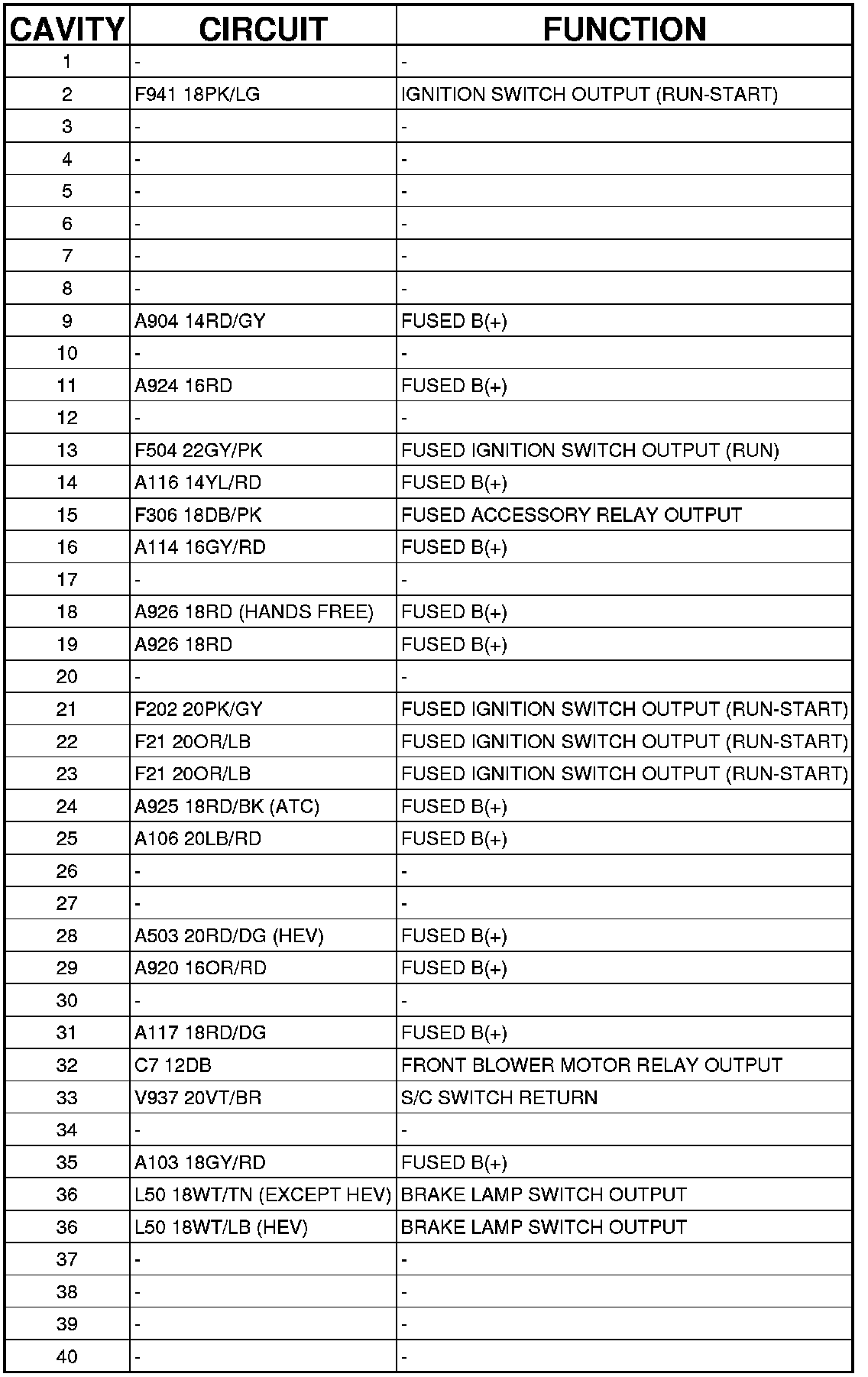

Connector C2 - (INSTRUMENT PANEL SIDE)




JUNCTION BLOCK - (INSTRUMENT PANEL SIDE)
