Rear
REMOVAL
1. Raise the vehicle on a hoist.

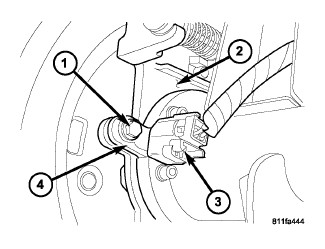

2. Disconnect the wheel speed sensor electrical connector (3).
3. Remove the mounting bolt (1) from the sensor (4).
4. Remove the sensor (4) from the brake caliper adapter (2).
REMOVAL
1. Raise the vehicle on a hoist.
2. Disconnect the wheel speed sensor electrical connector (3).
3. Remove the mounting bolt (1) from the sensor (4).
4. Remove the sensor (4) from the brake caliper adapter (2).
