Front

REMOVAL





1. Remove the front rotor Brake Rotor - Removal.

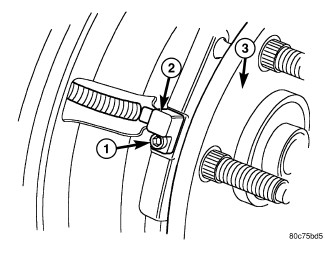

2. Remove the wheel speed sensor mounting bolt (1) from the hub (3).
3. Remove the wheel speed sensor (2) from the hub (3).
4. Remove the wiring from the clips and disconnect the electrical connector.
