Pinch Sensor - Description

DESCRIPTION

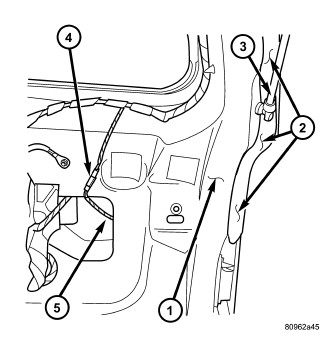

Pinch sensors (2) are located on each side of the liftgate (1). These sensors look like weather-strips, however they consist of pieces of electrically conductive rubber (tapeswitch), wires, resistor, double sided tape, and a plastic carrier. They are used to indicate an obstruction during a power liftgate close cycle. The right side pinch sensor contains a thermistor that is integral to the pinch sensor assembly. The thermistor is a temperature sensor used by the power liftgate control module to enable proper liftgate operation in extreme climate conditions.
