Front Blower Motor Relay - Installation

INSTALLATION






NOTE: Refer to the fuse and relay layout map on the inner surface of the PDC cover for rear blower motor relay identification and location.

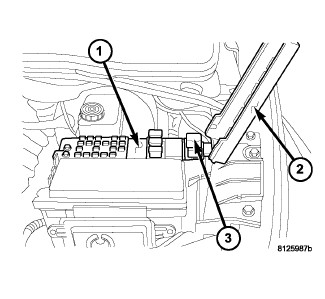

1. Position the rear blower motor relay (3) into the proper receptacle of the PDC (1).
2. Align the rear blower motor relay terminals with the terminal cavities in the PDC receptacle and push down firmly on the relay until the terminals are fully seated.
3. Close the PDC cover (2).
4. Reconnect the negative battery cable.
