Fuel Injector - Removal

REMOVAL





1. Remove the fuel rail assembly Fuel Rail - Removal

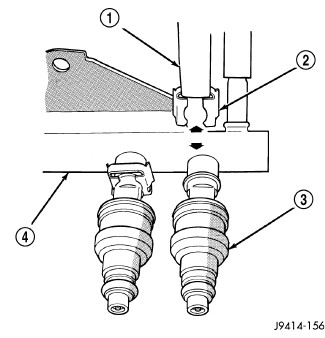

2. Using suitable pliers (1), remove the fuel injector retaining clip (2).
3. Remove the fuel injector (3) from the fuel rail (4) using a side to side motion while pulling the injector out of the fuel rail assembly.
