Evaporative Emission Control Canister: Locations

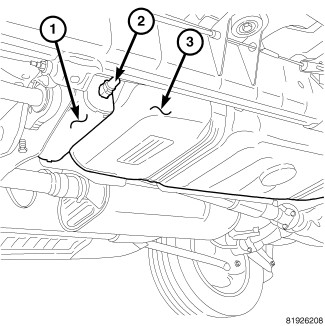

The EVAP canister (1) is located at the front of the fuel tank (3). The ESIM (Evaporative System Integrity Monitor) switch (2) is attached to the EVAP canister.
