Evap Purge Solenoid - Removal

REMOVAL

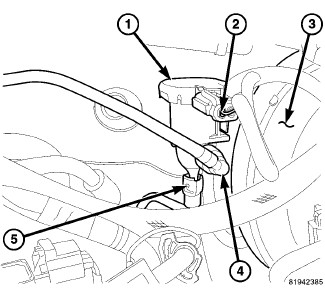

The duty cycle EVAP canister purge solenoid (1) is located in the engine compartment. It is attached to a tongue-type bracket near the brake power booster (3).

1. Carefully pull the solenoid assembly straight forward from the tongue-type bracket without bending the two vapor lines.
2. Disconnect electrical wiring connector (2) at solenoid.
3. Disconnect vapor line quick-connect fitting (4) at solenoid.
4. Disconnect vapor line quick-connect fitting (5) at solenoid.
