Power Distribution Center (PDC) - Installation






INSTALLATION

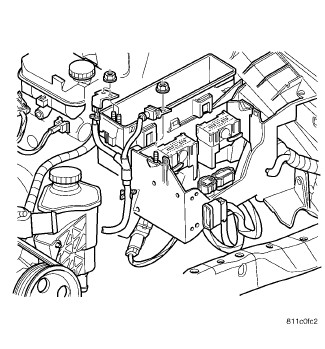

1. Connect electrical harness connectors to Power Distribution Center (PDC).
2. Position PDC and engage into the retaining tabs.
3. Connect the battery negative cable.
