Junction Block C4 (Instrument Panel Side)

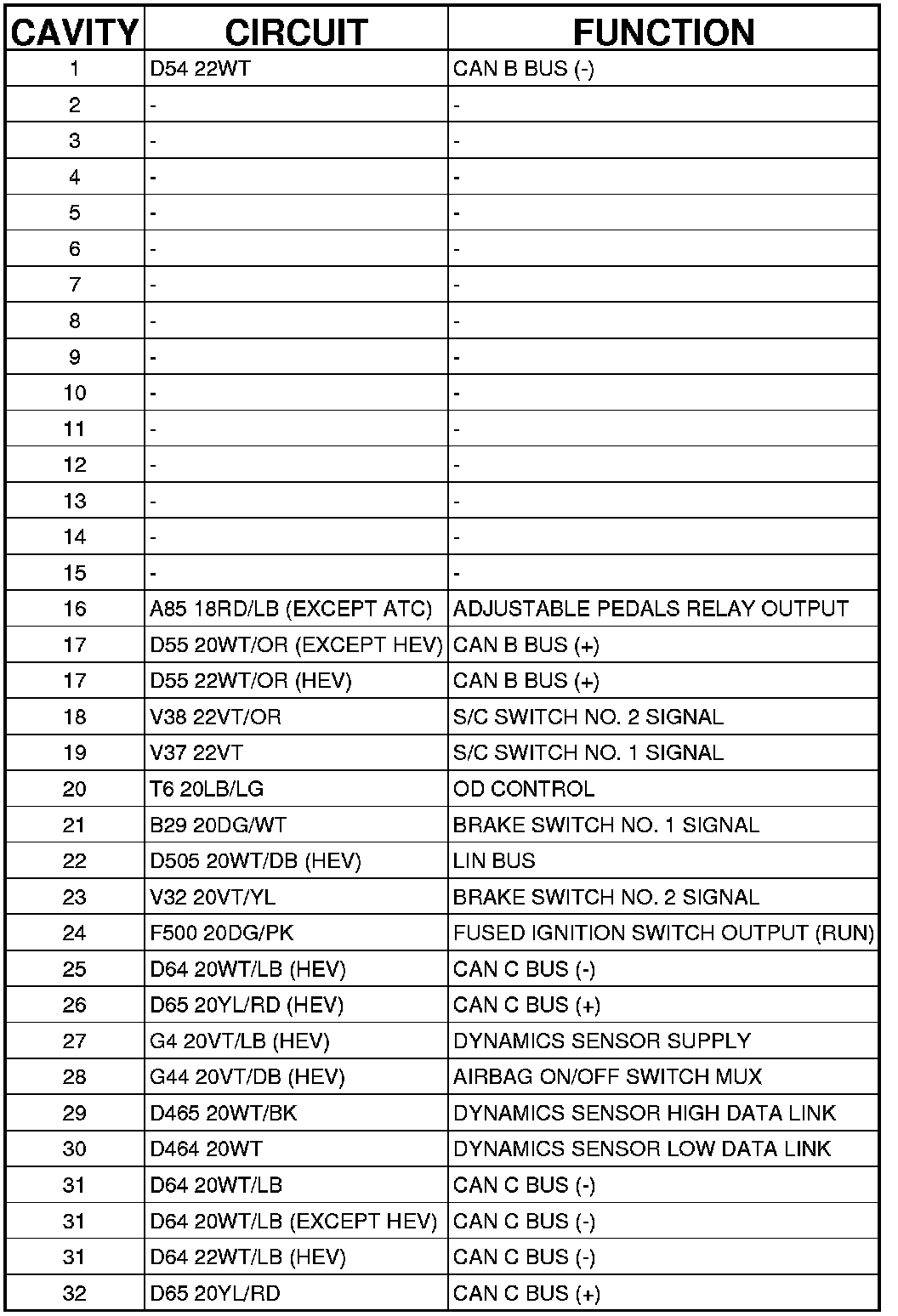

Connector C4 - (INSTRUMENT PANEL SIDE)




JUNCTION BLOCK - (INSTRUMENT PANEL SIDE)
