Horn - Description






DESCRIPTION





The dual-note horn system features dual electromagnetic horn units. The horn system includes the following major components:

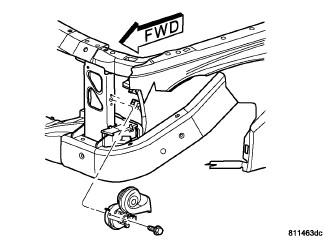

- Horn - The two horns are located on the left side of the engine compartment behind the grille.
- Horn Switch - The horn switch is molded into the driver airbag trim cover.
