Front

BULB - FRONT

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

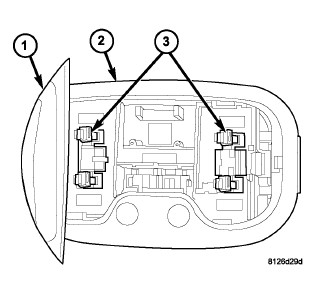

1. With the dome lamp lens (1) in the open position, align the ends of the bulb (3) with the two bulb holders within the front dome lamp housing (2).
2. Carefully press the bulb firmly and evenly into the bulb holders until it snaps into place.
3. Reinstall the lamp into the headliner. Dome Lamp - Installation.
4. Reconnect the battery negative cable. On vehicles equipped with the optional Hybrid Electric Vehicle (HEV) system, a technician trained in proper HEV service safety procedures must also reinstall the high voltage service disconnect into the high voltage battery pack.
