Rear

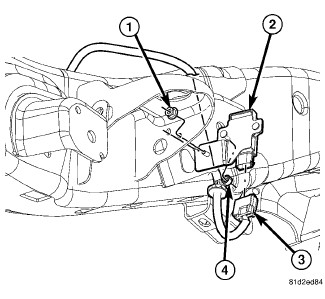

REAR TRANSPONDER





1. Raise and support the vehicle.
2. Remove the mounting nut (1) for the transponder (2).
3. Disconnect the electrical connector (3) and remove the transponder (2) from the vehicle.
