Ambient Temperature Sensor - Installation






INSTALLATION

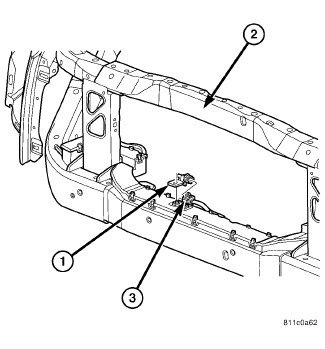

1. Position the ambient temperature sensor (1) onto the radiator yoke (2).
2. Install the screw that secures the ambient temperature sensor to the radiator yoke. Tighten the screw to 5.6 Nm (50 in. lbs.).
3. Connect the wire harness connector (3) to the ambient temperature sensor (1).
4. Reconnect the negative battery cable.
