Instrument Panel Bezel - Removal

REMOVAL





1. Before proceeding with the following repair procedure, review all warnings and cautions. Service Precautions
2. Remove the floor console. Floor Console - Removal

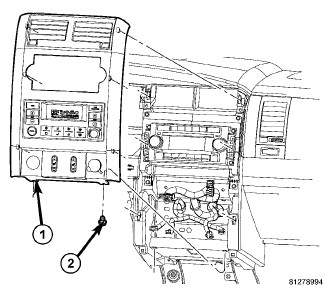

3. Remove the two screws (2) and remove the bezel (1).

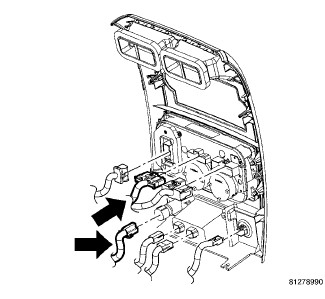

4. Disconnect the electrical connectors and remove the bezel.
