Clock - Installation

INSTALLATION

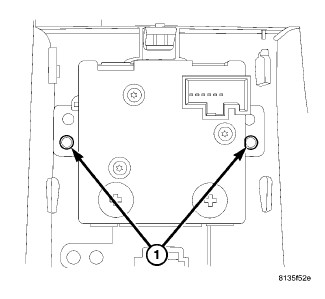

1. Place the lamp and sockets (1) into the opening and turn clockwise until detent is felt.

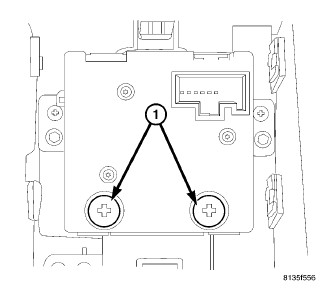

2. Place the clock into bezel opening and install the two retaining screws (1).

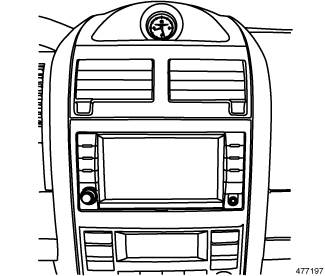

3. Install the instrument panel center bezel Instrument Panel Bezel - Installation.
4. Connect the negative battery cable.
5. Adjust the clock to the proper time.
