Infrared Temperature Sensor - Description

DESCRIPTION

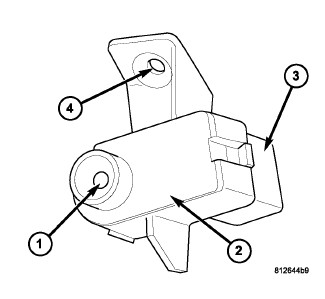

The infrared sensor consists of an infrared transducer (1) located in the overhead console. The infrared sensor is used only on models equipped with the automatic temperature control (ATC) heater-A/C system. The infrared transducer is contained within a black molded plastic housing (2) with an integral wire connector receptacle (3). The integral mounting tab (4) allows the infrared sensor to be secured with one screw to the overhead console.
