Front A/C Receiver Drier - Description






DESCRIPTION

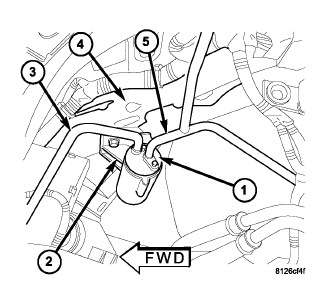

The receiver/drier (1) is mounted in a bracket (2) secured to the right front frame rail (4) in the engine compartment. The receiver/drier is connected between the front section of the liquid line (3) and the rear section of the liquid line (5) between the condenser outlet and the evaporator inlet.
