Rear

DESCRIPTION

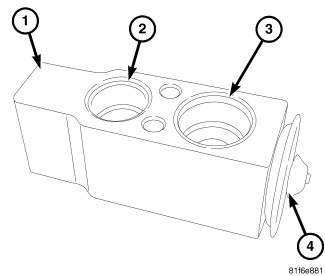

The rear A/C expansion valve controls the amount of refrigerant entering the rear A/C evaporator. The rear A/C expansion valve is of a thermostatic expansion valve (TXV) design and consists of an aluminum H-valve type body (1) with an inlet port (2), outlet port (3) and an integral thermal sensor (4).

The rear A/C expansion valve is located between the rear extension tubes and the rear A/C evaporator at the rear of the heater-A/C housing.
