Description - Rear

DESCRIPTION

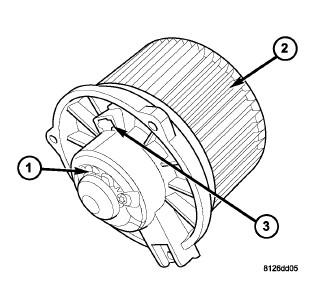

The rear blower motor (1) and blower wheel (2) is located in the rear heater-A/C housing behind the right interior quarter panel trim and is connected to rear heater-A/C wire harness by a integral wire harness connector (3). The rear blower motor controls the velocity of air flowing through the rear heater-A/C housing by spinning the wide squirrel cage-type blower wheel at the selected speed. Rear blower motor speed is controlled by regulating the ground path through the rear blower motor switch and the rear blower motor resistor.
