Description - Front

DESCRIPTION

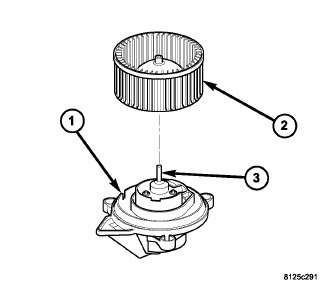

The blower motor (1) is a 12-volt, direct current (DC) motor with a squirrel cage-type blower wheel (2) that is secured to the blower motor shaft (3). The blower motor and wheel are located near the passenger side end of the HVAC housing in the passenger compartment below the instrument panel.
