Description - Rear

DESCRIPTION

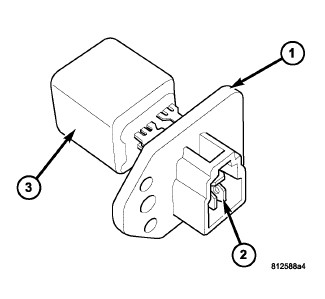

A rear blower motor resistor is used on this model when it is equipped with the rear heater-A/C system. The rear blower motor resistor is mounted to the rear heater-A/C housing, directly below the rear blower motor. The rear blower motor resistor consists of a molded plastic mounting plate (1) with an integral wire connector receptacle (2). Concealed behind the mounting plate are coiled resistor wires contained within a ceramic heat sink (3).

The rear blower motor resistor is accessed for service by removing the rear quarter interior trim panel from the right side of the vehicle.
