Rear Ceiling Air Outlet

REAR CEILING AIR OUTLET

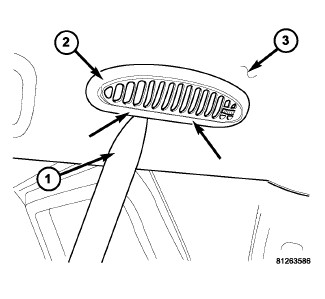

1. Using Trim Stick C-4755 or equivalent (1), gently pry between both bottom ends of the rear ceiling air outlet bezel (2) and the headliner (3) to release the snap clip retainers that secure the air outlet bezel to the headliner.
2. Remove the rear ceiling air outlet(s) from the headliner.
