Rear Ceiling Air Outlet Grille

REAR CEILING AIR OUTLET GRILLE

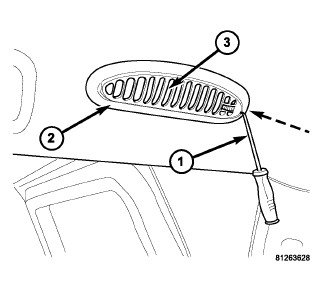

1. Using a pick or another suitable tool (1), gently pry between the right end of the rear ceiling air outlet bezel (2) and the air outlet grille (3) to release the snap clip retainer that secures the grille to the pivot on the right side of the bezel.

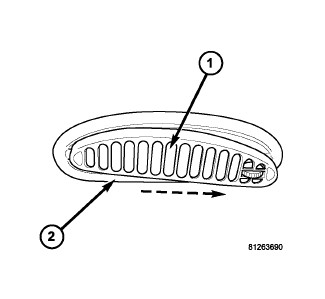

2. Remove the rear ceiling air outlet grille (1) from the pivot on the left side of the air outlet bezel (2) by moving the grille out and to the right of the bezel.
