Rear Air Outlet - Description

DESCRIPTION

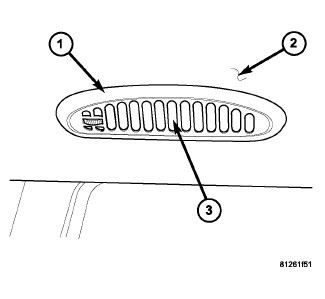

There are four rear ceiling air outlets (1) located in the headliner (2). One air outlet is located at each outboard side of the intermediate seat position facing the center of the vehicle, and one located in front of each rear seat position facing the rear of the vehicle. Each of the rear ceiling air outlets contain a grille with movable vanes (3) that are used to direct or shut off the flow of the conditioned air leaving the rear ceiling air outlets. The rear ceiling air outlets and grilles can each be serviced separately.

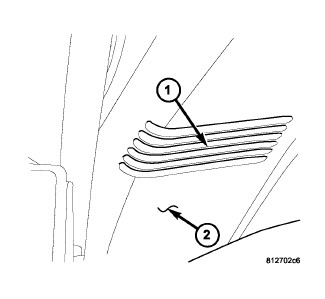

There is one rear floor air outlet (1) located behind the right rear door area in the right quarter interior trim panel (2). The airflow from the rear floor air outlet is directed by fixed vanes in the right quarter interior trim panel and cannot be adjusted. The rear floor air outlet is not serviceable.
