Rear

INSTALLATION

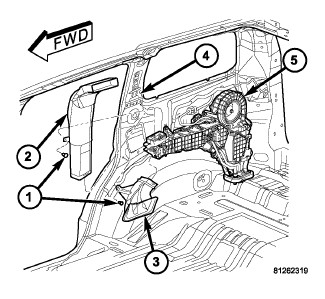

1. Connect the rear floor distribution duct (3) to the rear heater-A/C housing (5).
2. Connect the rear ceiling distribution duct (2) to the headliner duct and the rear heater-A/C housing. Make sure that the rear ceiling distribution duct is fully installed to ensure a good seal.
3. Install the push-pin fasteners (1) that secure the rear ceiling distribution duct and the rear floor distribution duct to the right interior quarter panel (4).
4. Install the right interior quarter panel trim Quarter Trim Panel - Installation.
