Front

INSTALLATION

FRONT FLOOR DISTRIBUTION DUCT

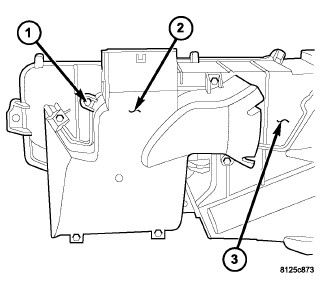

1. Position the front floor distribution duct (2) to the bottom of the HVAC housing (3).
2. Install the six screws (1) that secure the front floor distribution duct to the HVAC housing. Tighten the screws to 2 Nm (17 in. lbs.).
3. Install the HVAC housing Front HVAC Housing Installation.

INTERMEDIATE FLOOR DISTRIBUTION DUCTS

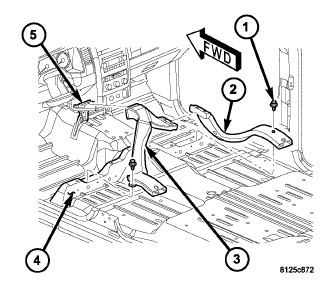

1. If removed, connect the right intermediate floor distribution duct (2) to the left intermediate floor distribution duct (3).
2. Connect the left intermediate floor distribution duct to the front floor distribution duct (5).
3. Install the two push-pin fasteners (1) that secure the intermediate floor distribution ducts to the floor support (4).
4. Install the carpet onto the front floor panel and under the instrument panel Carpet - Installation.
5. Install the front seats Seat - Installation.
6. Install the center floor console Floor Console - Installation.
