Defroster Duct - Installation






INSTALLATION

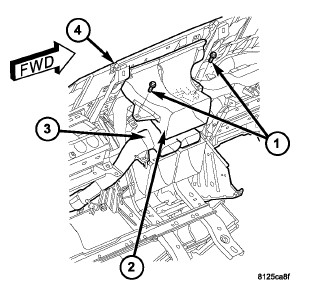

1. Position the defroster duct (2) into the instrument panel (4).
2. Install the two screws (1) that secure the defroster duct to the instrument panel wire harness support (3). Tighten the screws to 2 Nm (17 in. lbs.).

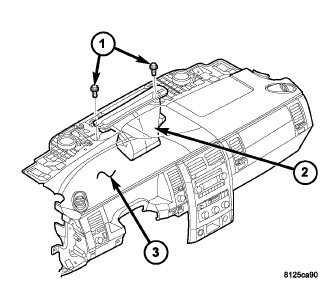

3. Install the two screws (1) that secure the defroster duct (2) to the top of the instrument panel (3). Tighten the screws to 2 Nm (17 in. lbs.).
4. Install the instrument panel Instrument Panel - Installation.
