Center Distribution Duct - Removal






REMOVAL





1. Remove the instrument panel and place it on a workbench Instrument Panel - Removal.
2. Remove the defroster duct Defroster Duct - Removal.
3. Remove the demister ducts Instrument Panel Demister Duct - Removal.

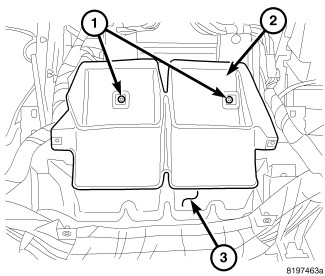

4. Remove the two screws (1) that secure the center distribution duct (2) to the instrument panel support.
5. Disconnect the center distribution duct from the instrument panel duct (3) and remove the center duct.
