Front Crankshaft Oil Seal - Removal






REMOVAL





1. Disconnect negative cable from battery.
2. Remove accessory drive belt Serpentine Accessory Drive Belt - Removal.
3. Remove A/C compressor mounting fasteners and set compressor aside.
4. Drain cooling system Service and Repair.
5. Remove upper radiator hose.
6. Disconnect electrical connector for fan mounted inside radiator shroud.
7. Remove radiator shroud attaching fasteners.

NOTE: Transmission cooler line snaps into shroud lower right hand corner.

8. Remove radiator cooling fan and shroud Radiator Cooling Fan
9. Remove crankshaft damper bolt.
10. Remove damper using Crankshaft Insert 8513A (1) and 1023 Three Jaw Puller (2).

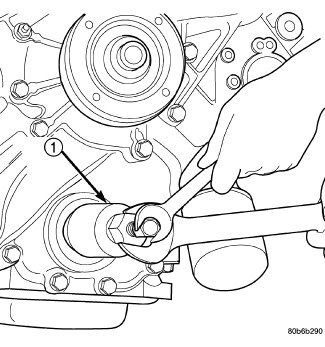

11. Using Crankshaft Front Seal Remover 8511 (1), remove crankshaft front seal.
