Engine Oil Pump - Installation






INSTALLATION





1. Position the oil pump onto the crankshaft and install one oil pump retaining bolt.
2. Position the primary timing chain tensioner and install three retaining bolts.

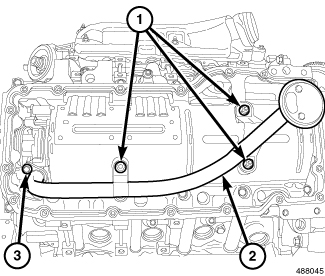

3. Tighten the oil pump and primary timing chain tensioner retaining bolts to 28 Nm (250 in. lbs.) in the sequence shown.
4. Install the secondary timing chain tensioners and timing chainsTiming Chain & Sprockets - Installation.





5. Install the timing chain cover Engine Timing Cover(s) - Installation.
6. Install the pick-up tube and oil pan Engine Oil Pan - Installation.
