Rear






REMOVAL

1. Raise vehicle on hoist.
2. Using a suitable jack, support transmission.

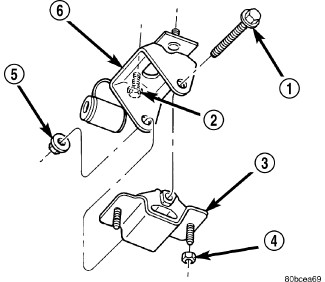

3. Remove the nut from the insulator mount through bolt (Manual transmission and 4x2 automatic transmission only).

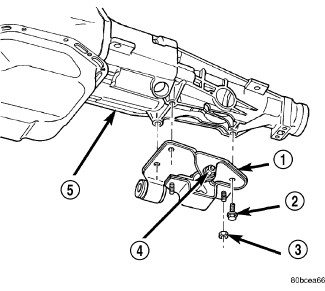

4. Remove the four bolts and washers retaining the mount to the transmission (4x4 automatic transmission only).










5. Raise the transmission enough to remove the through bolt (Manual transmission and 4x2 automatic transmission only).

6. Raise the transmission and remove the bolts retaining the mount to the crossmember (4x4 automatic transmission only).









7. Remove the two nuts retaining the isolator to the crossmember (Manual transmission and 4x2 automatic transmission only).

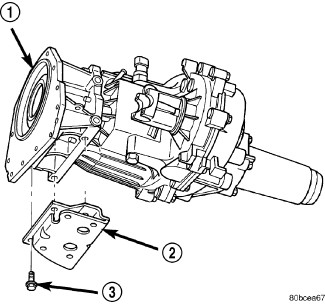

8. Remove the bolts (two bolts manual transmission)(three bolts 4x2 automatic transmission) retaining the insulator bracket to the transmission.
