Cylinder Head - Right






RIGHT SIDE





1. Disconnect battery negative cable.
2. Remove air cleaner assembly, resonator assembly and air inlet hose.
3. Drain cooling system Service and Repair.
4. Remove accessory drive belt Serpentine Accessory Drive Belt - Removal.
5. Remove air conditioning compressor retaining bolts and move compressor to the left.
6. Remove heater hoses.
7. Disconnect and remove positive crankcase ventilation (PCV) hose.
8. Remove oil fill tube.

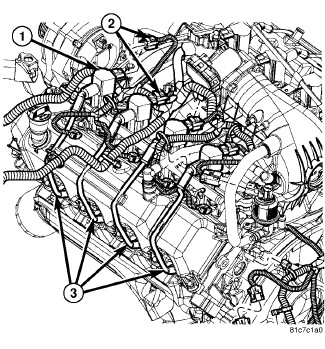

9. Remove spark plug wires (3).
10. Remove right rear breather tube and filter assembly.
11. Remove cylinder head cover retaining bolts.
12. Remove cylinder head cover.

NOTE: The gasket may be used again, provided no cuts, tears, or deformation has occurred.
