Cylinder Head - Right

RIGHT SIDE






CAUTION: Do not use harsh cleaners to clean the cylinder head covers. Severe damage to covers may occur.

1. Clean cylinder head cover and both sealing surfaces. Inspect and replace gasket as necessary.

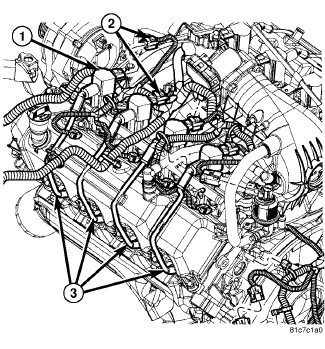

2. Install cylinder head cover and hand start all fasteners.
3. Tighten cylinder head cover bolts and double ended studs to 12 Nm (105 in. lbs).
4. Install right rear breather tube and filter assembly.
5. Install spark plug wires (3).
6. Install the oil fill tube.
7. Install PCV hose.
8. Install heater hoses.
9. Install air conditioning compressor retaining bolts.
10. Install accessory drive belt Serpentine Accessory Drive Belt - Installation.
11. Fill Cooling system Service and Repair.
12. Install air cleaner assembly, resonator assembly and air inlet hose.
13. Connect battery negative cable.
