Core Plug - Removal

REMOVAL










1. Drain the cooling system Service and Repair.

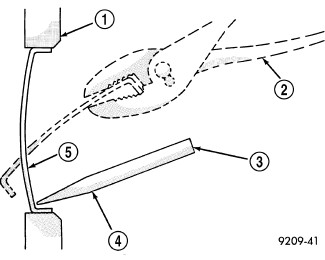

2. Using a blunt tool such as a drift or a screw driver and a hammer, strike the bottom edge of the cup plug (5).
3. Using a suitable pair of pliers, grasp the core plug (5) and remove.
