Engine Cooling Radiator - Removal

3.7L/4.7L/5.7L ENGINES





1. Disconnect the battery negative cable.
2. Drain the cooling system Service and Repair
3. Remove pushpins (1) and the upper condenser/radiator seal (2).
4. Remove the air filer housing assembly.Air Cleaner - Removal.





5. Remove upper radiator hose (1).
6. Remove overflow tube (2).
7. Remove radiator fan shroud (4) from the radiator and position over the radiator fan.
8. Remove the upper radiator support (3).
9. Raise and support the vehicle.

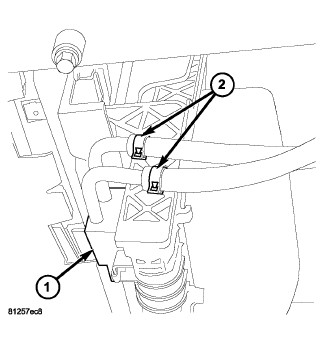

10. Disconnect the power steering cooler lines (2).

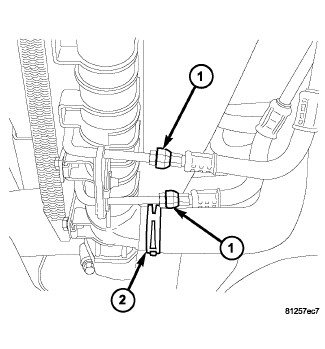

11. Disconnect the transmission cooler lines (1).
12. Remove the lower radiator hose (2).
13. Lower the vehicle.
14. Remove the upper radiator mount.
15. Remove the LH and RH radiator side seals.
16. Remove the radiator.
17. Remove the power steering cooler from the radiator, if necessary.
18. Remove the transmission cooler from radiator, if necessary.
