Engine Cooling Radiator - Installation

3.7L/4.7L/5.7L ENGINES

The radiator has two isolator pins on bottom of both tanks. These fit into alignment holes in radiator lower support.





1. Install the power steering cooler, if removed.
2. Install the transmission oil cooler if removed.
3. Install the upper radiator mount
4. Position the isolator pins into the alignment holes in the radiator lower support.

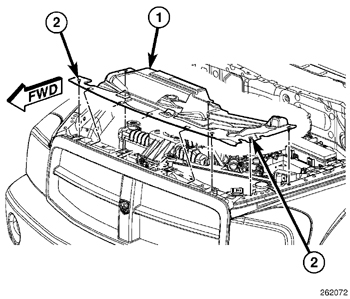

5. Install the upper radiator support. Tighten the bolts to 11 Nm (100 in. lbs.)
6. Install the LH and RH radiator side seals.

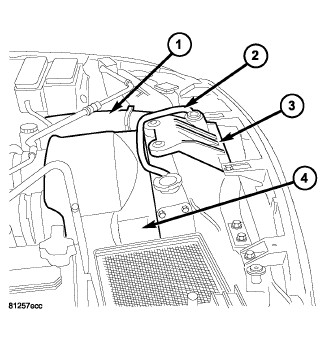

7. Install the upper radiator hose.
8. Install the overflow tube.
9. Install the radiator shroud.





10. Raise the vehicle.
11. Install the power steering cooler lines.
12. Install the transmission cooler lines.
13. Install the lower radiator hose.
14. Lower the vehicle.
15. Install the air filter housing assembly Air Cleaner - Installation.
16. Fill the radiator Service and Repair.
17. Connect the battery negative cable.
18. Start and warm the engine. Check for leaks.
