Rear Heater Core - Description

DESCRIPTION

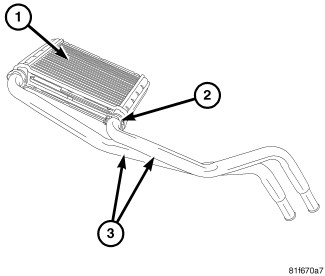

The rear heater core (1) is a heat exchanger made of rows of tubes and fins. The rear heater core is located in the rear heater-A/C housing behind the right interior quarter trim panel and is retained in the housing by a plastic mounting bracket and a screw. The heater core tubes (3) are attached to the heater core by metal retaining clamps (2) and rubber O-ring seals and are secured to the rear heater-A/C housing by a plastic flange.

The heater core tubes are not serviced separately from the rear heater core. The rear heater-A/C housing must be removed from the vehicle to service the rear heater core.
