Engine Coolant Temperature Sensor - Installation

4.7L ENGINE





1. Apply thread sealant to ECT sensor threads.

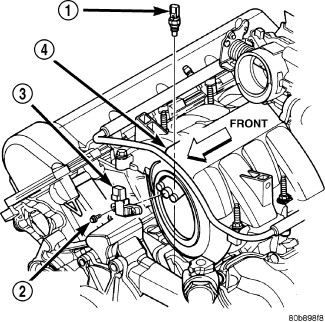

2. Install the ECT sensor (1) into the engine.
3. Tighten ECT sensor to 27 Nm (20 ft. lbs.).
4. Connect the electrical connector to sensor (1).
5. Fill the cooling system Service and Repair.
