Coolant Recovery Bottle - Installation

COOLANT RECOVERY CONTAINER

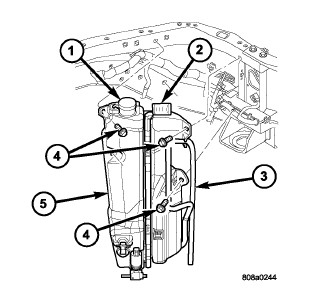

1. Position the coolant recover container (5).
2. Install the mounting bolts (4). Tighten the bolts (4) to 10 Nm (89 in. lbs.).
3. Connect the washer pump electrical connector.
4. Connect the washer hose (3).
5. Connect the overflow hose to the radiator.
6. Fill the coolant recover container Service and Repair.
