Home >> Dodge and Ram >> 2009 >> Durango 4WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution Center >> Wiring Diagram Index

Wiring Diagram Index

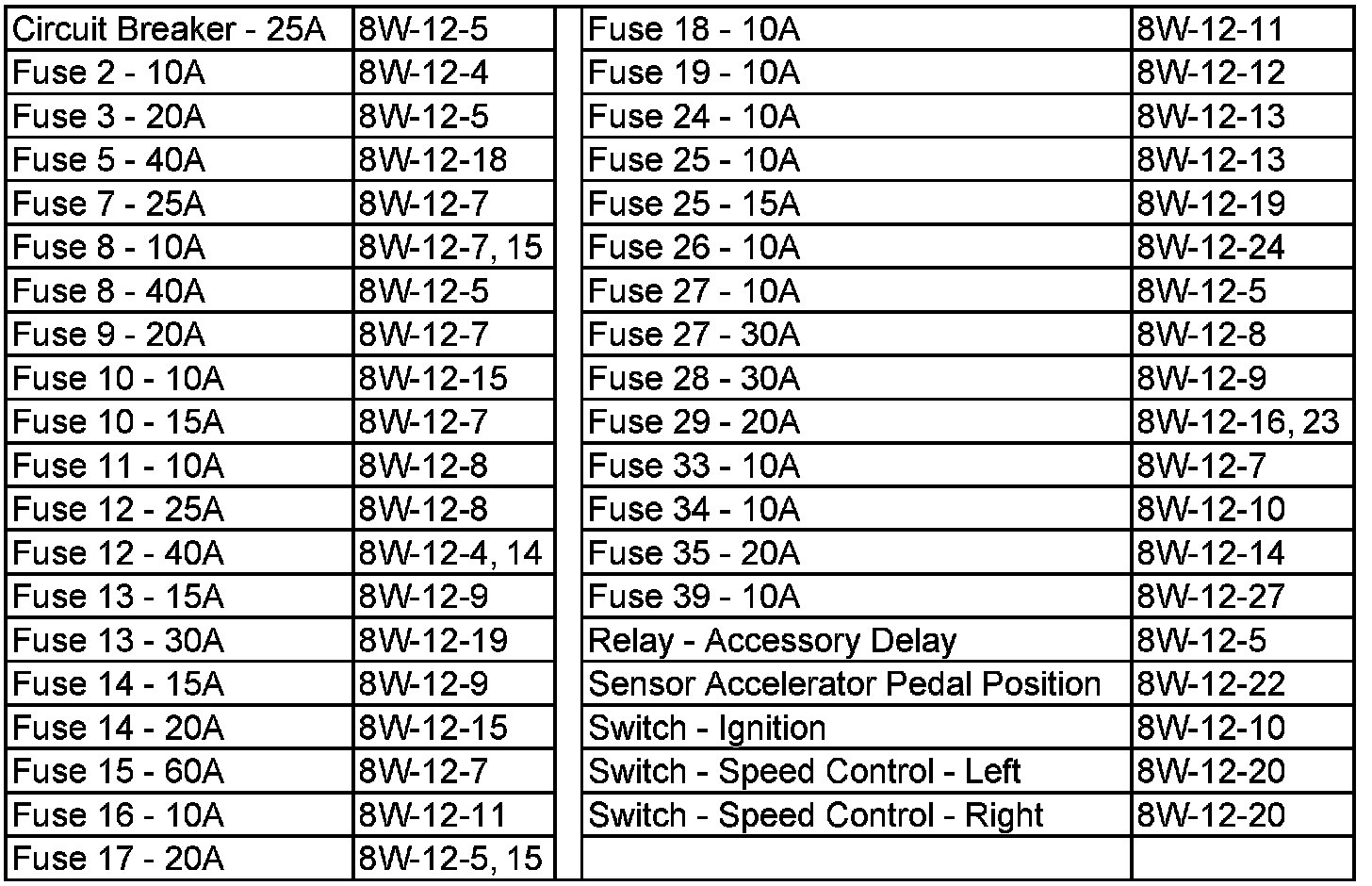

Junction Block Circuits:

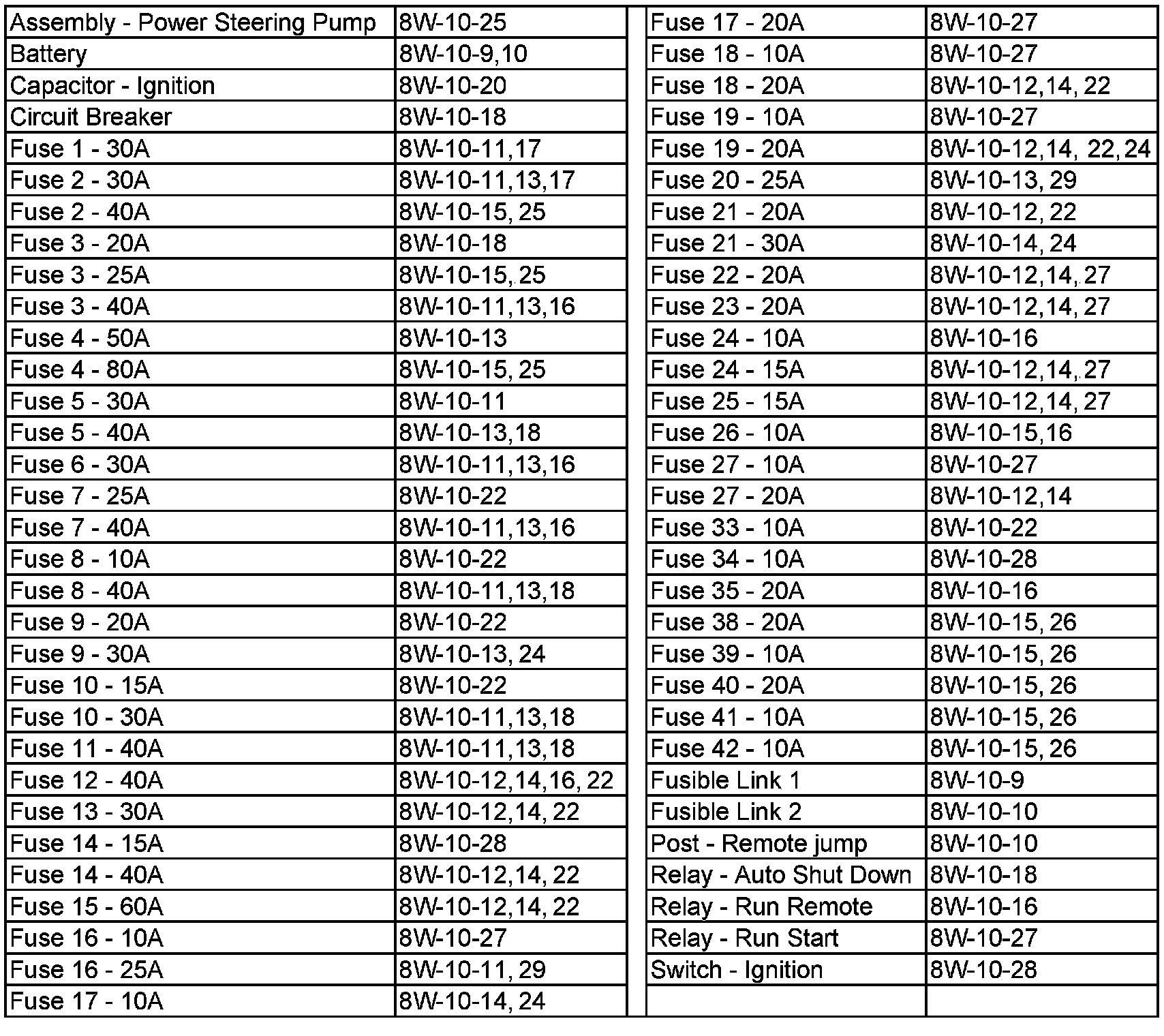

Integrated Power Module Circuits:

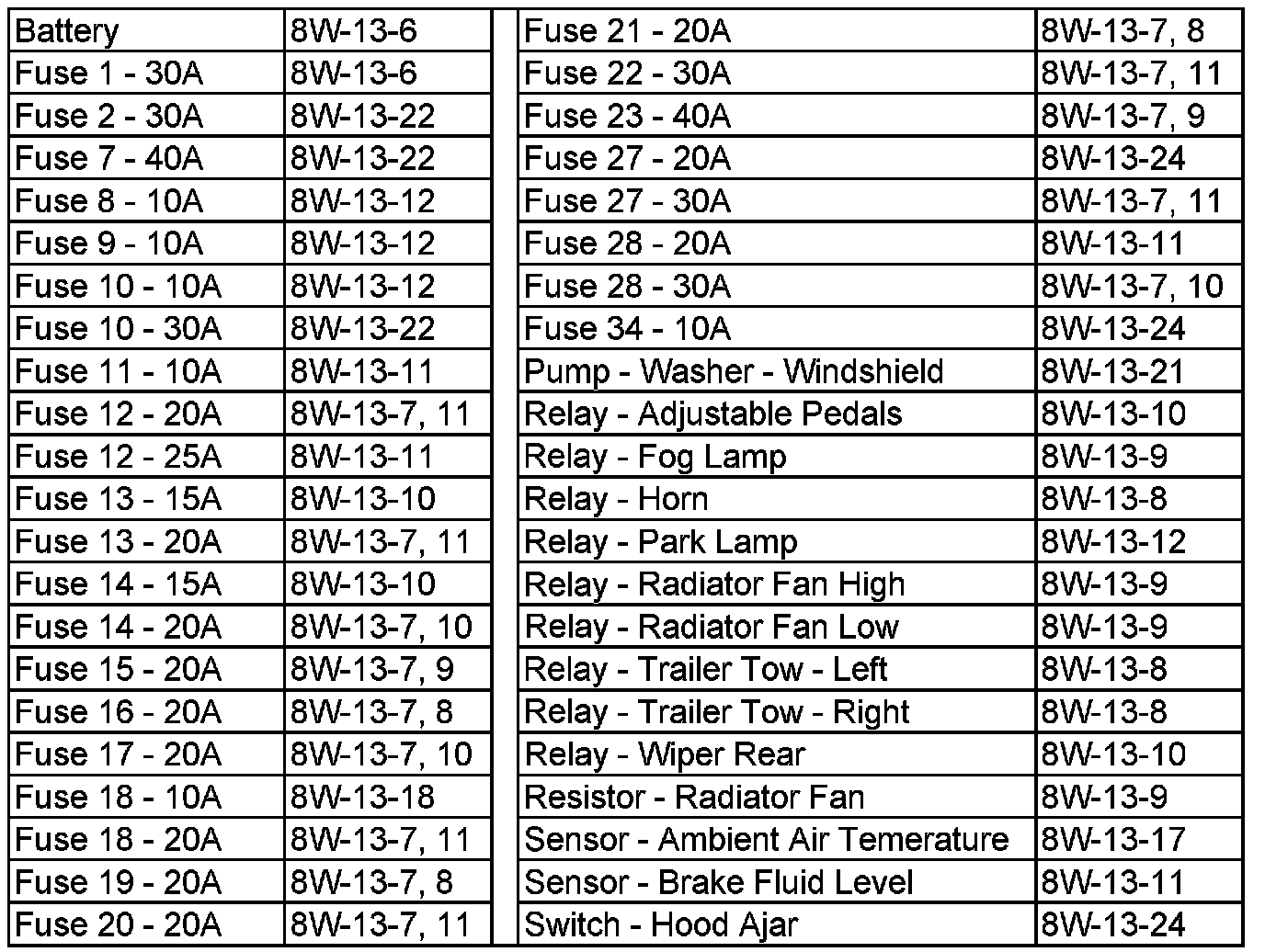

Power Distribution Circuits:
