Group 8W-42 (Air Conditioning)

AIR CONDITIONING-HEATER - Diagrams
PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

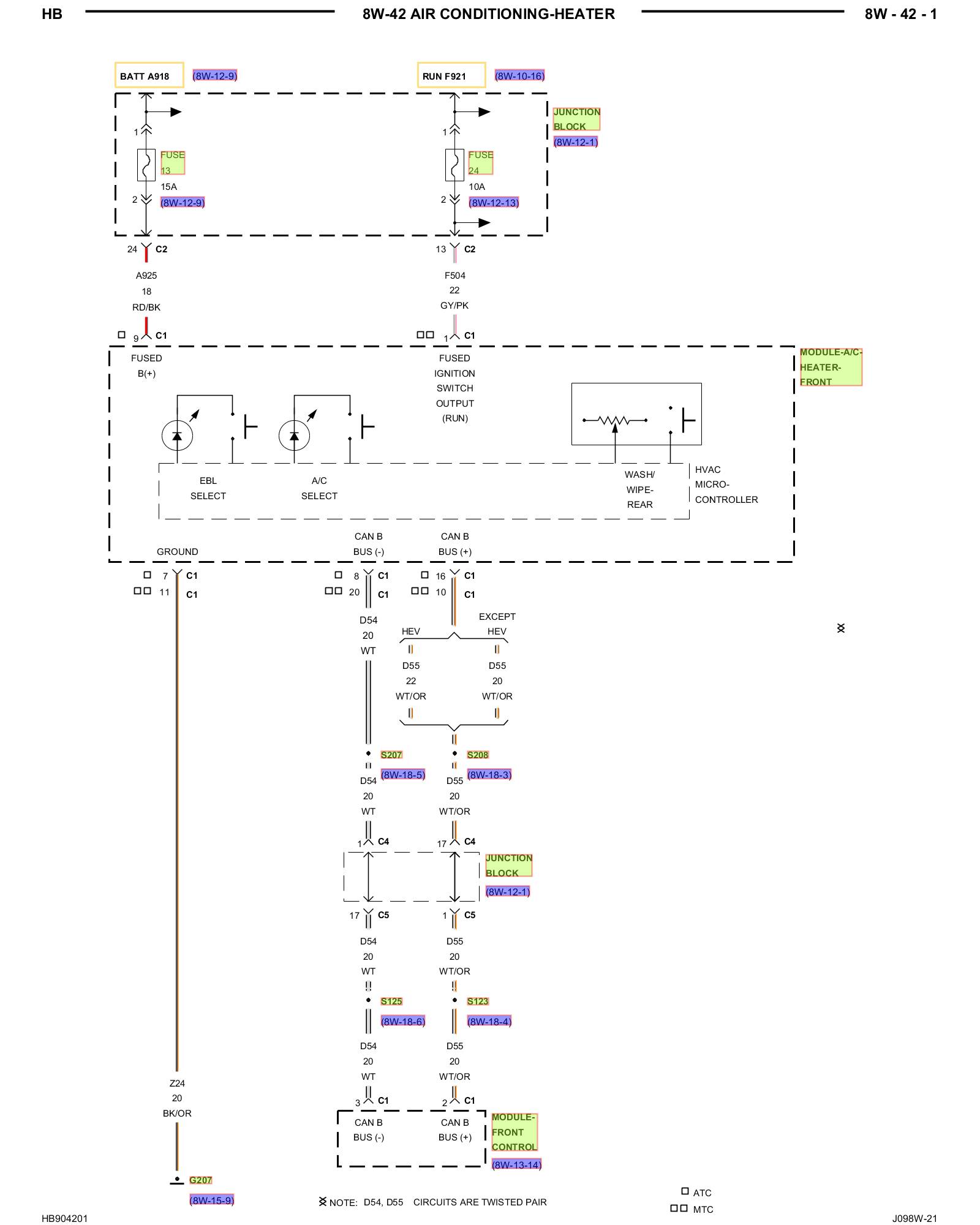

Air Conditioning 8W-42-01:

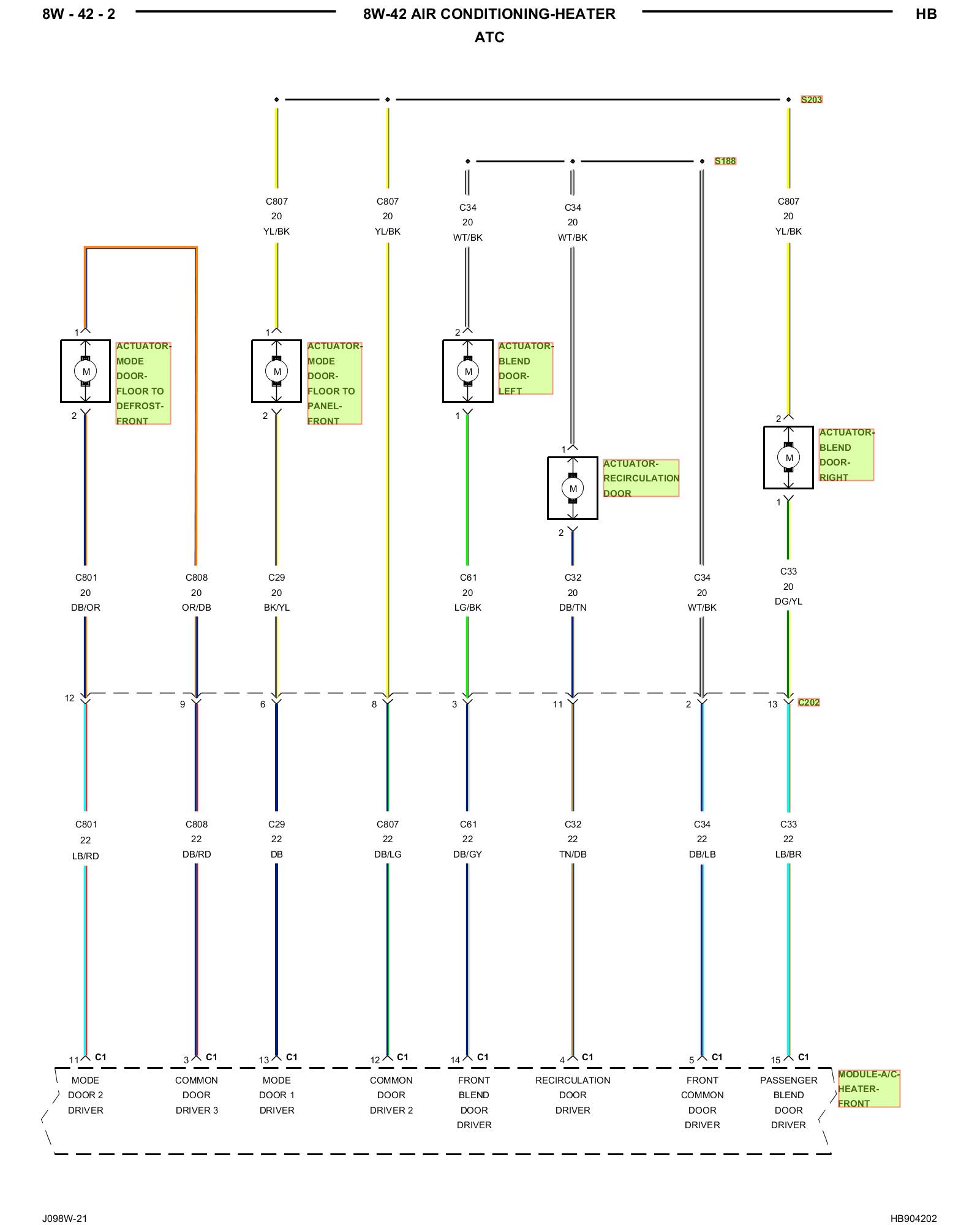

Air Conditioning 8W-42-02 (ATC):

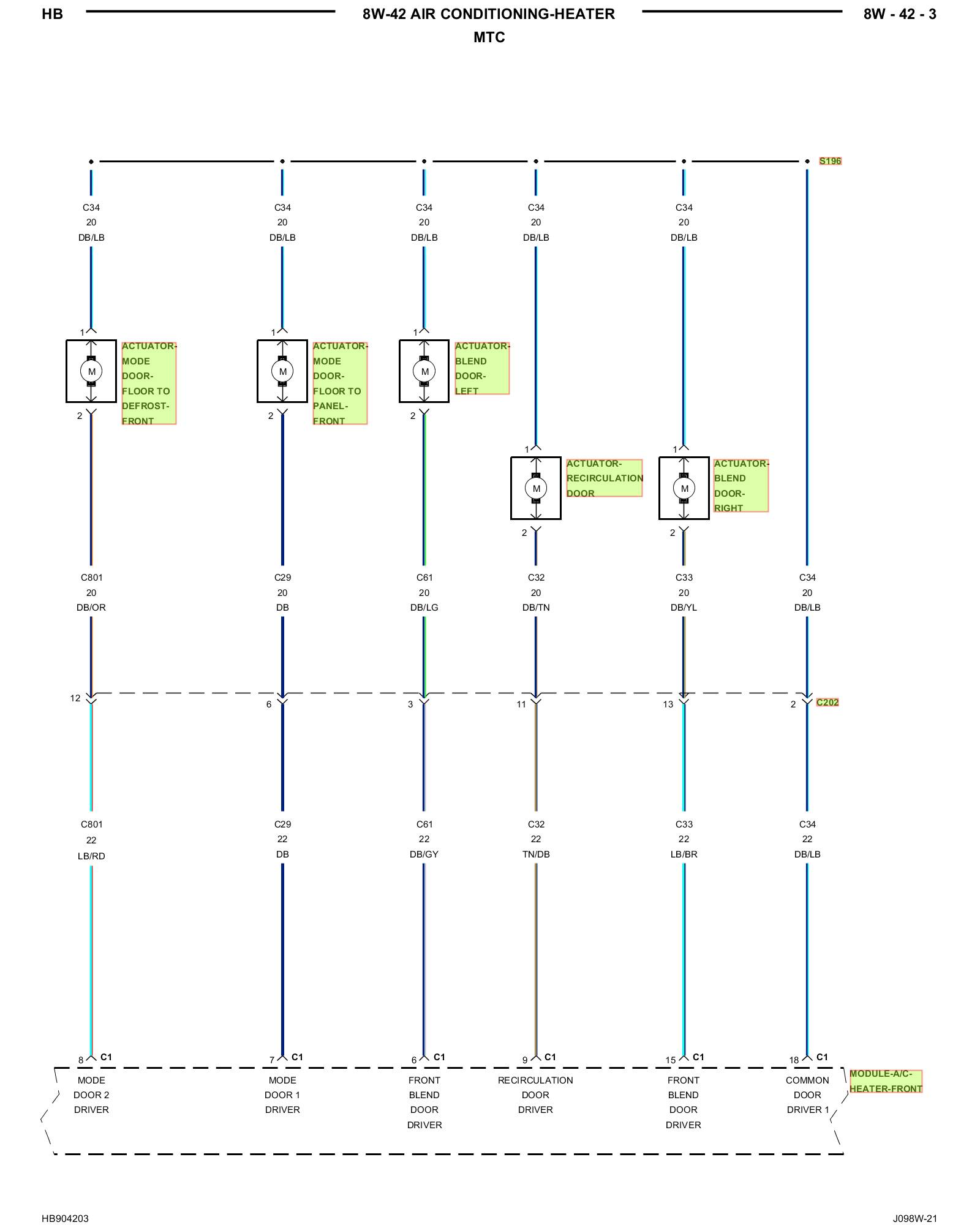

Air Conditioning 8W-42-03 (MTC):

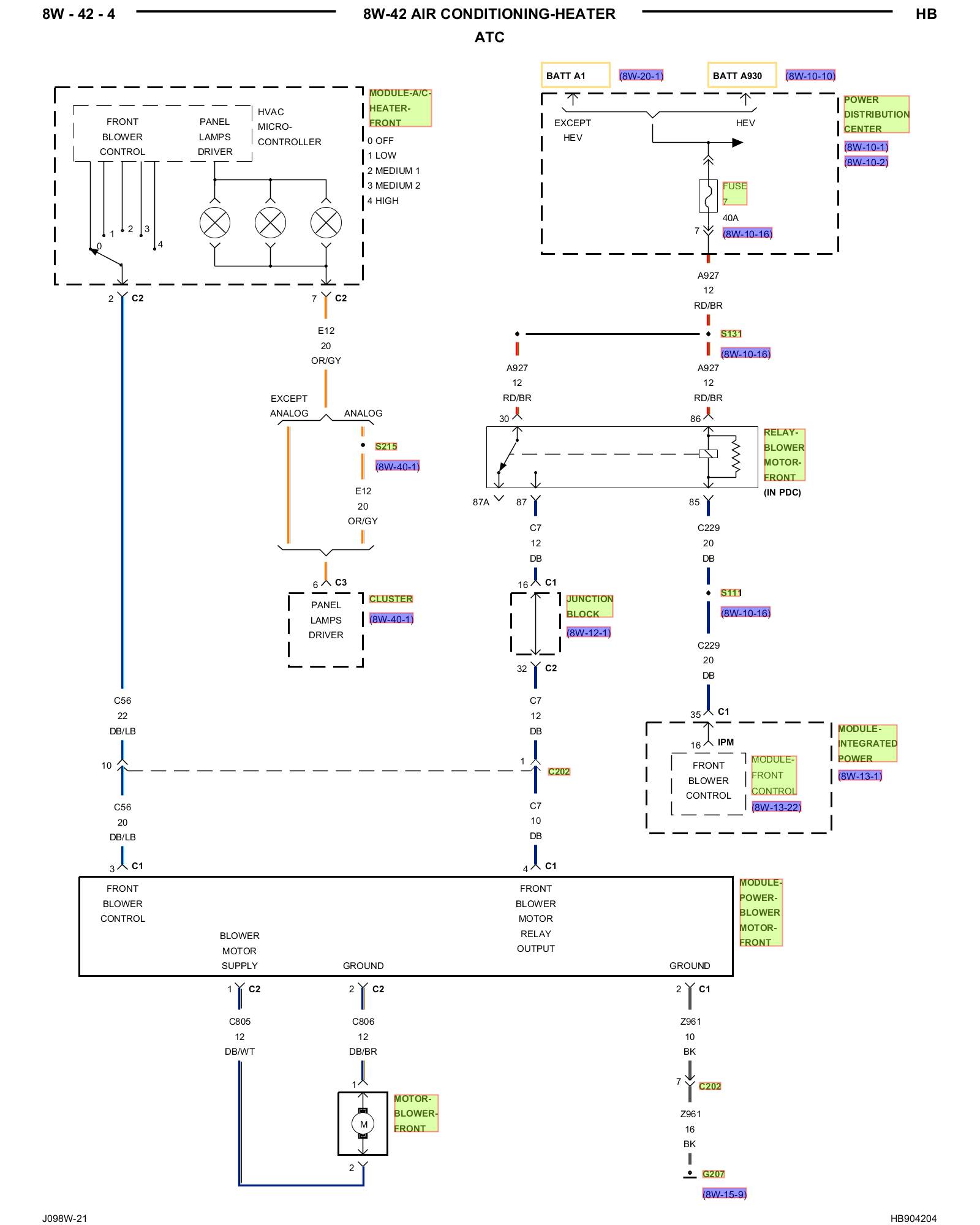

Air Conditioning 8W-42-04 (ATC):

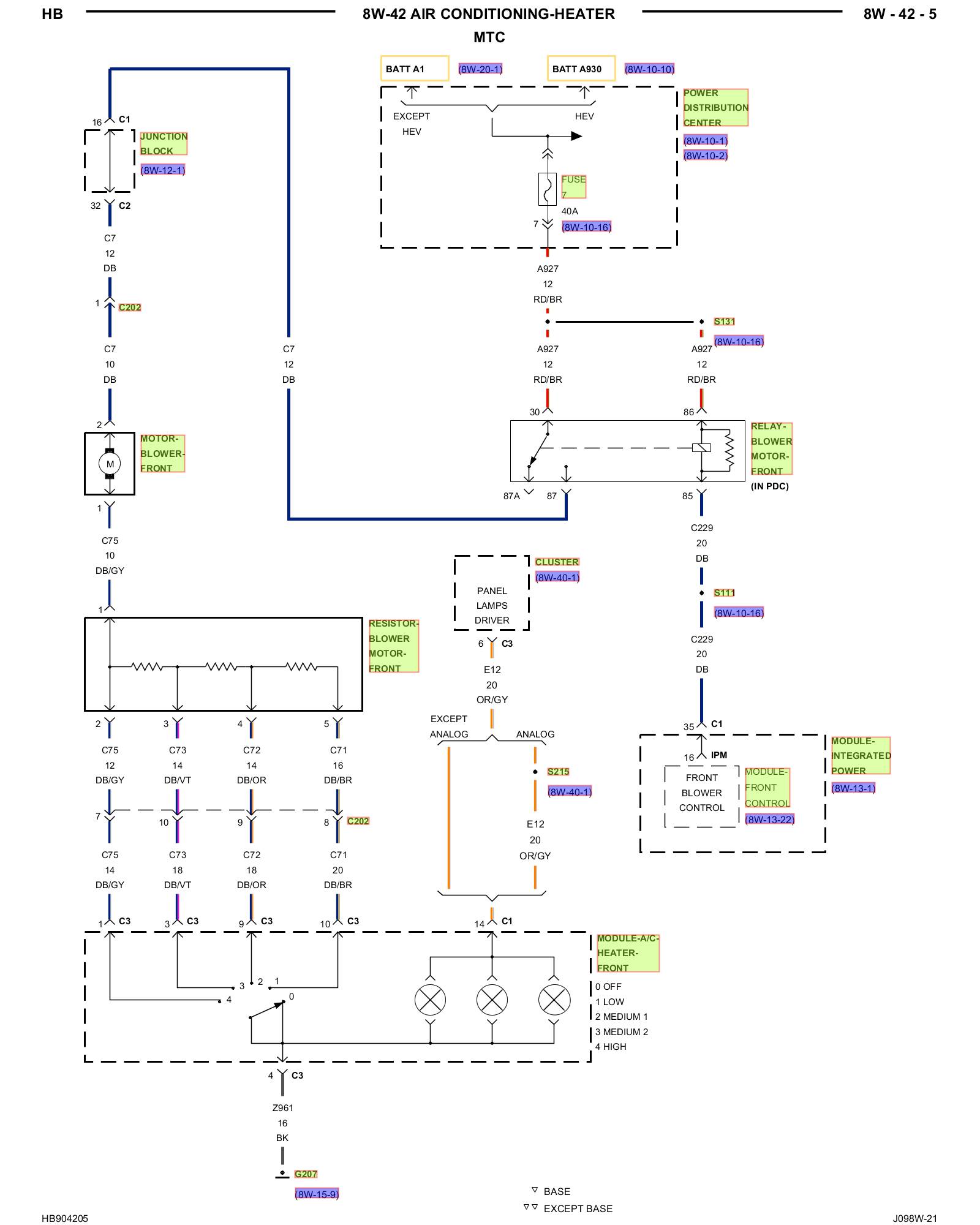

Air Conditioning 8W-42-05 (MTC):

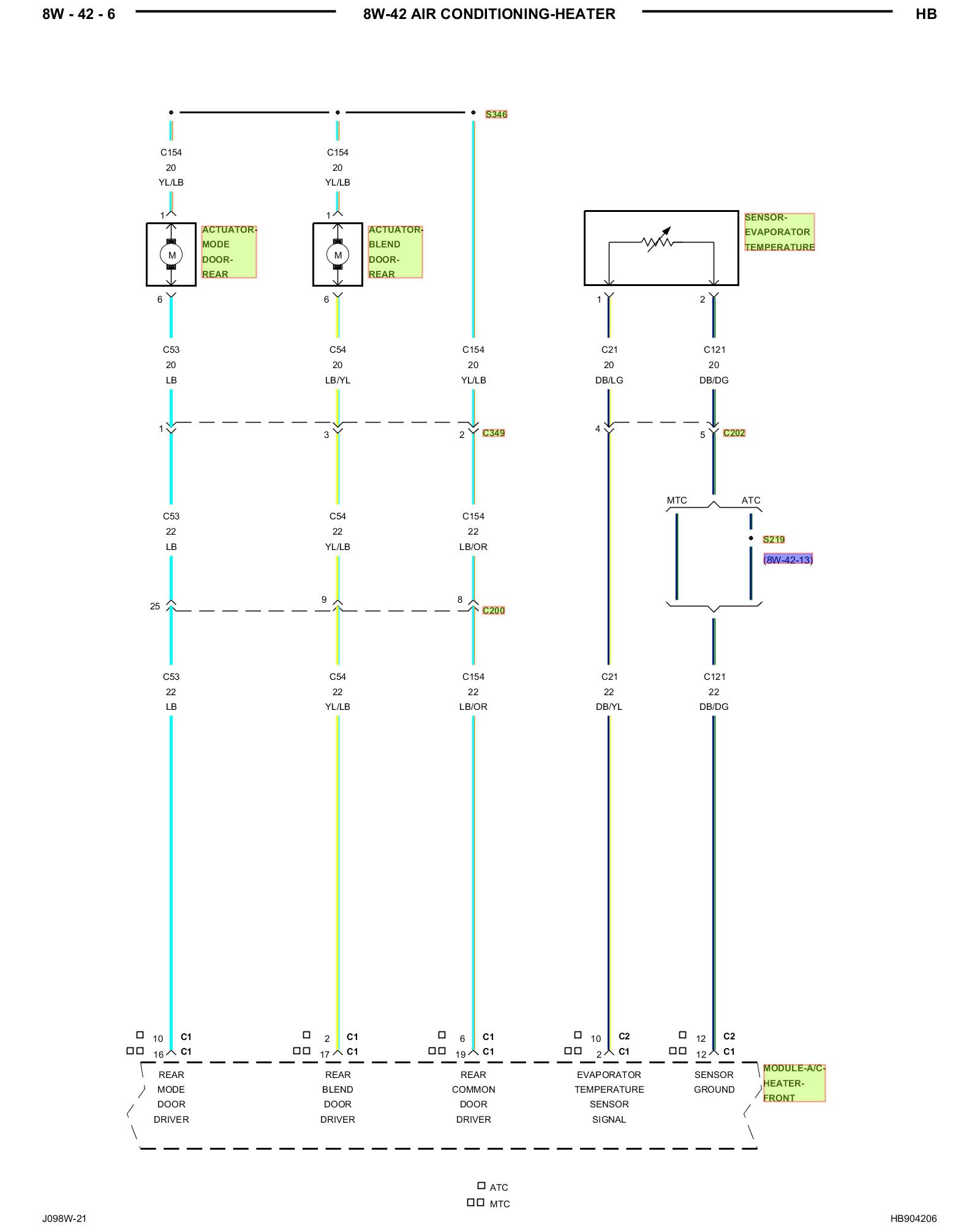

Air Conditioning 8W-42-06:

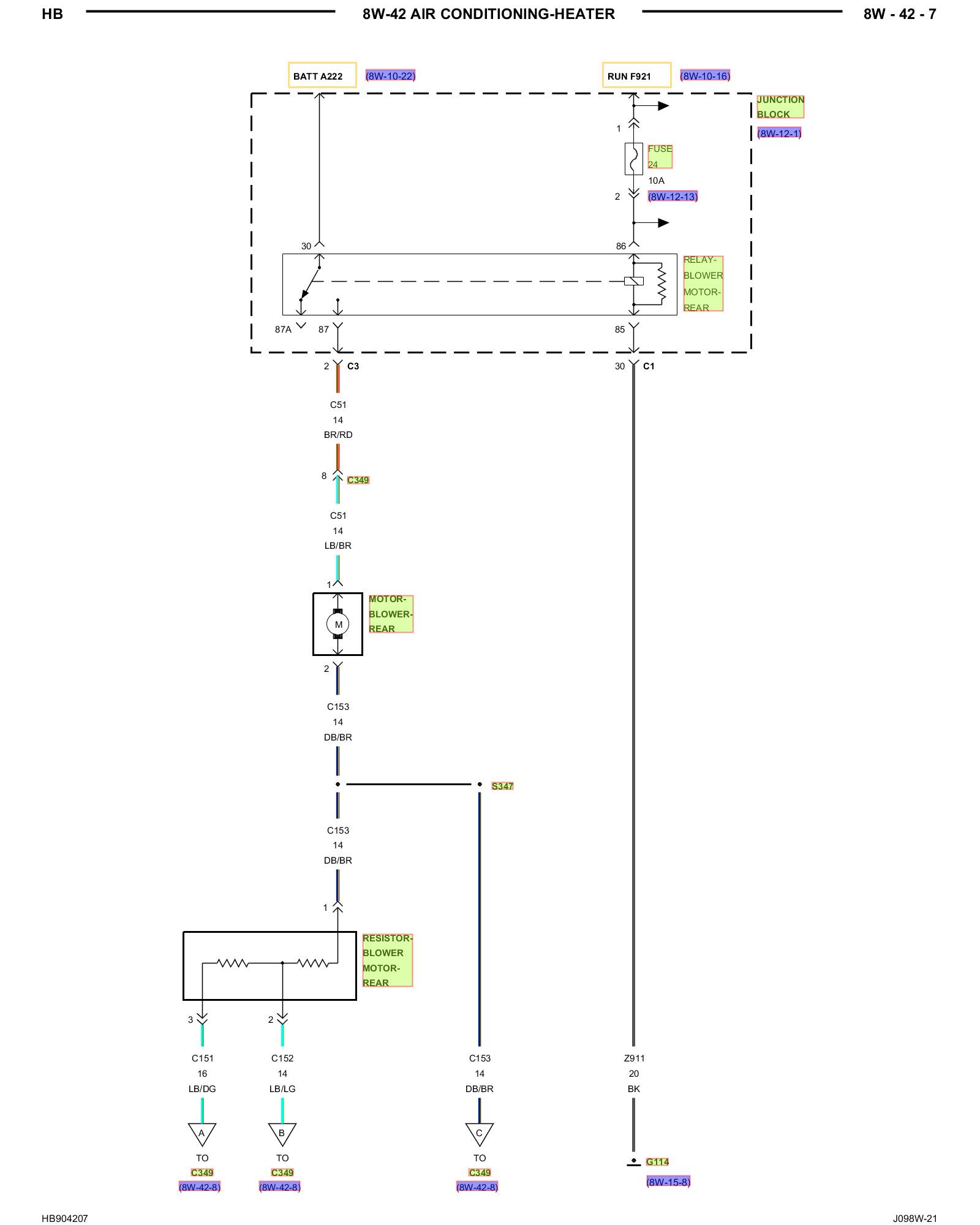

Air Conditioning 8W-42-07:

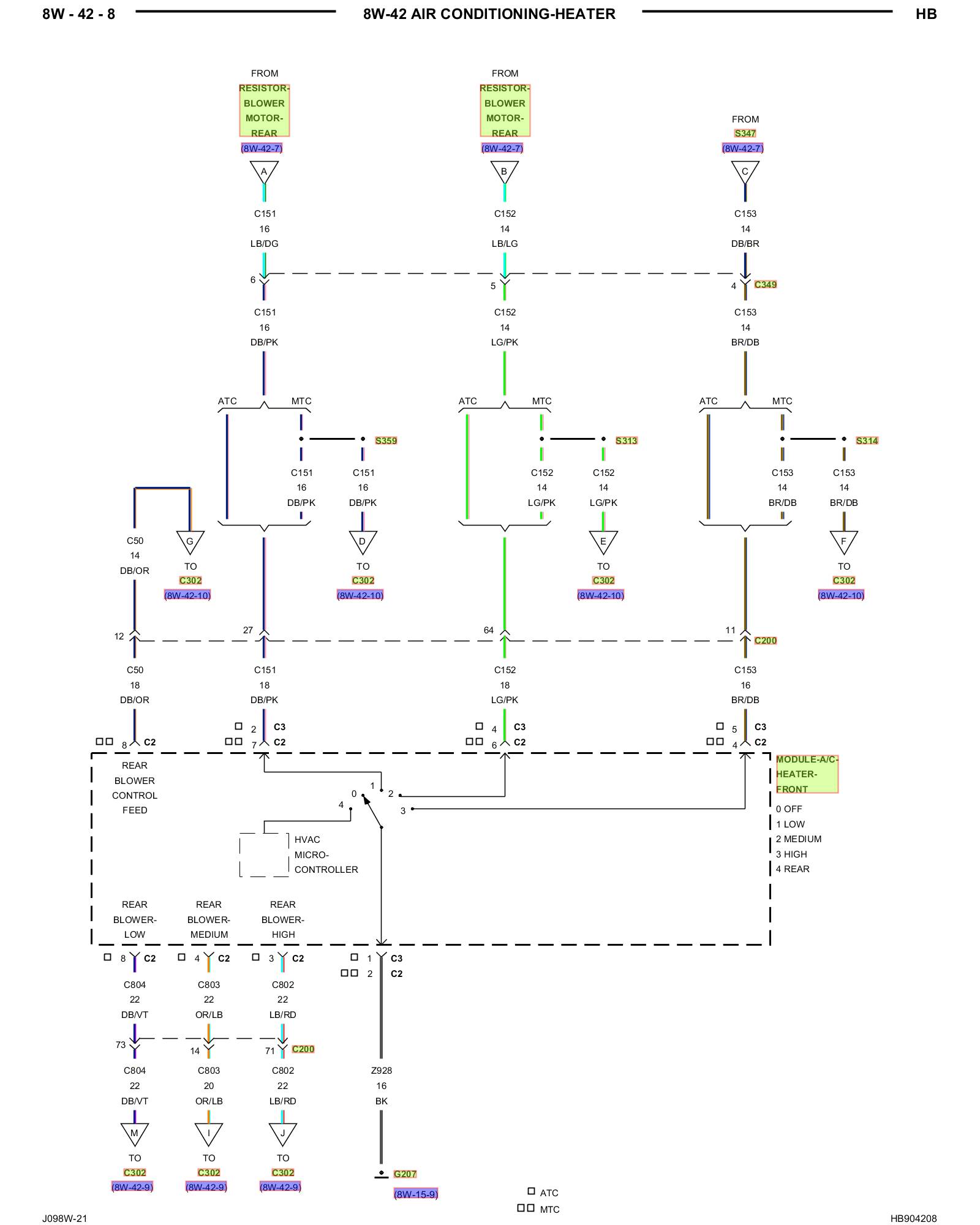

Air Conditioning 8W-42-08:

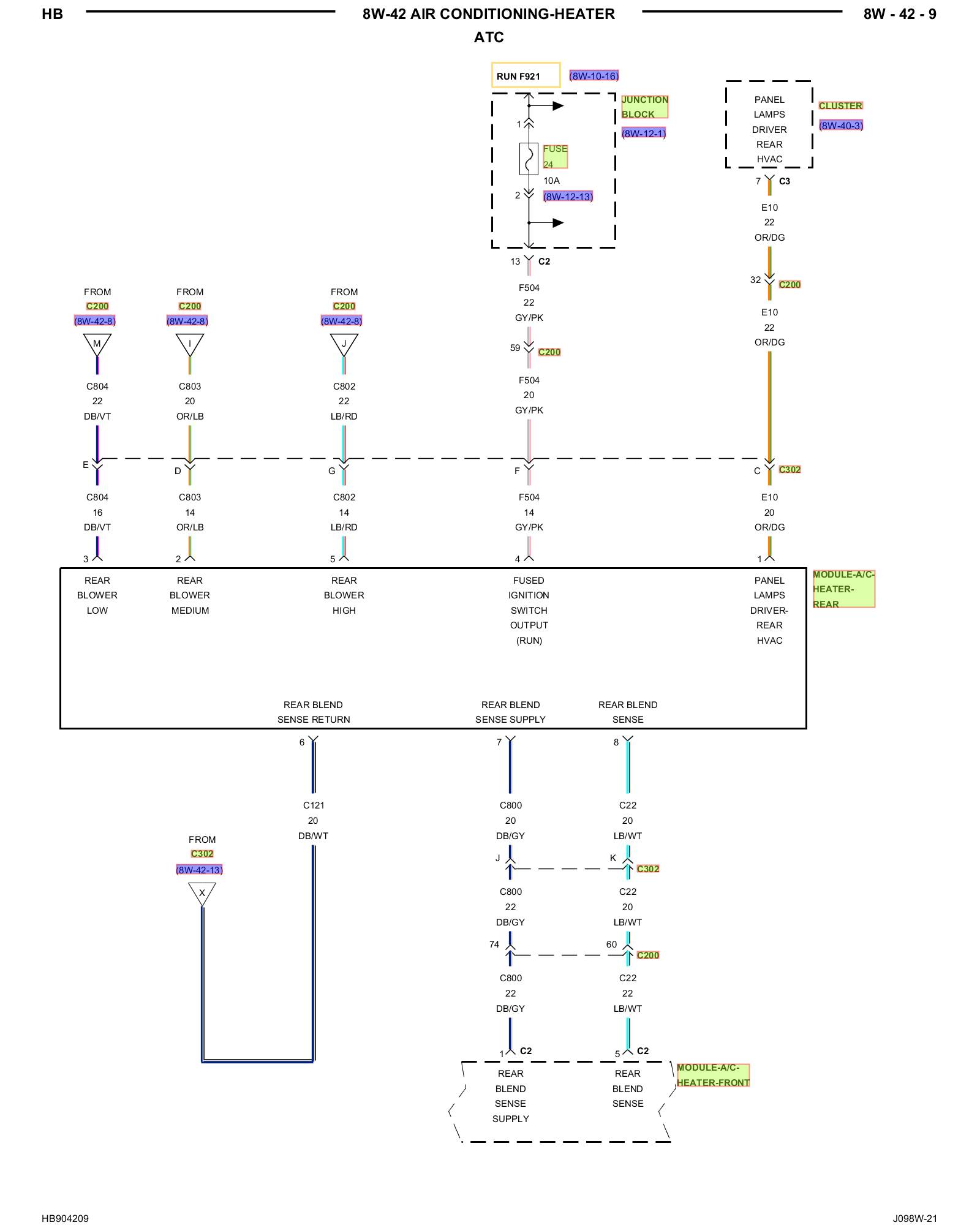

Air Conditioning 8W-42-09 (ATC):

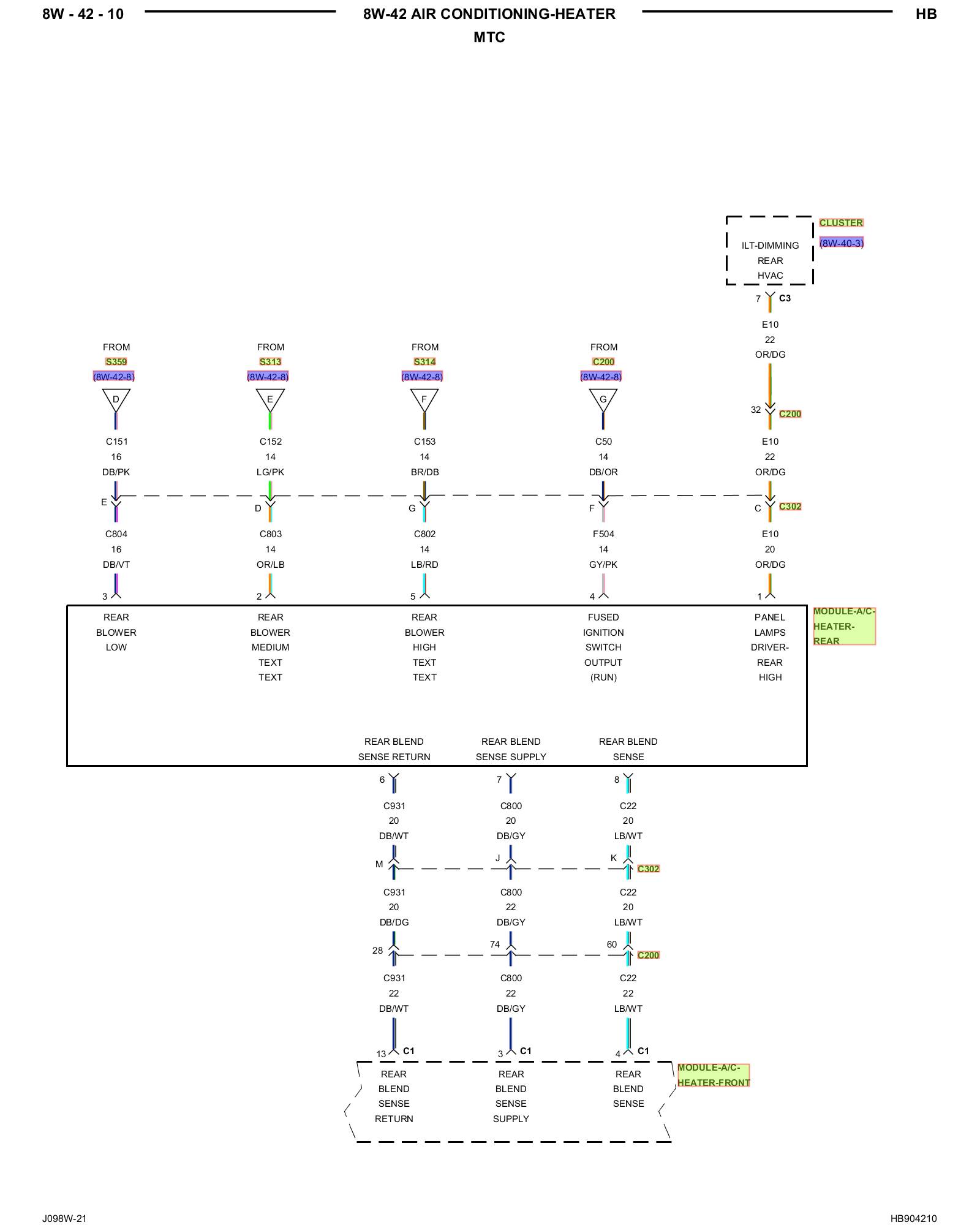

Air Conditioning 8W-42-10 (MTC):

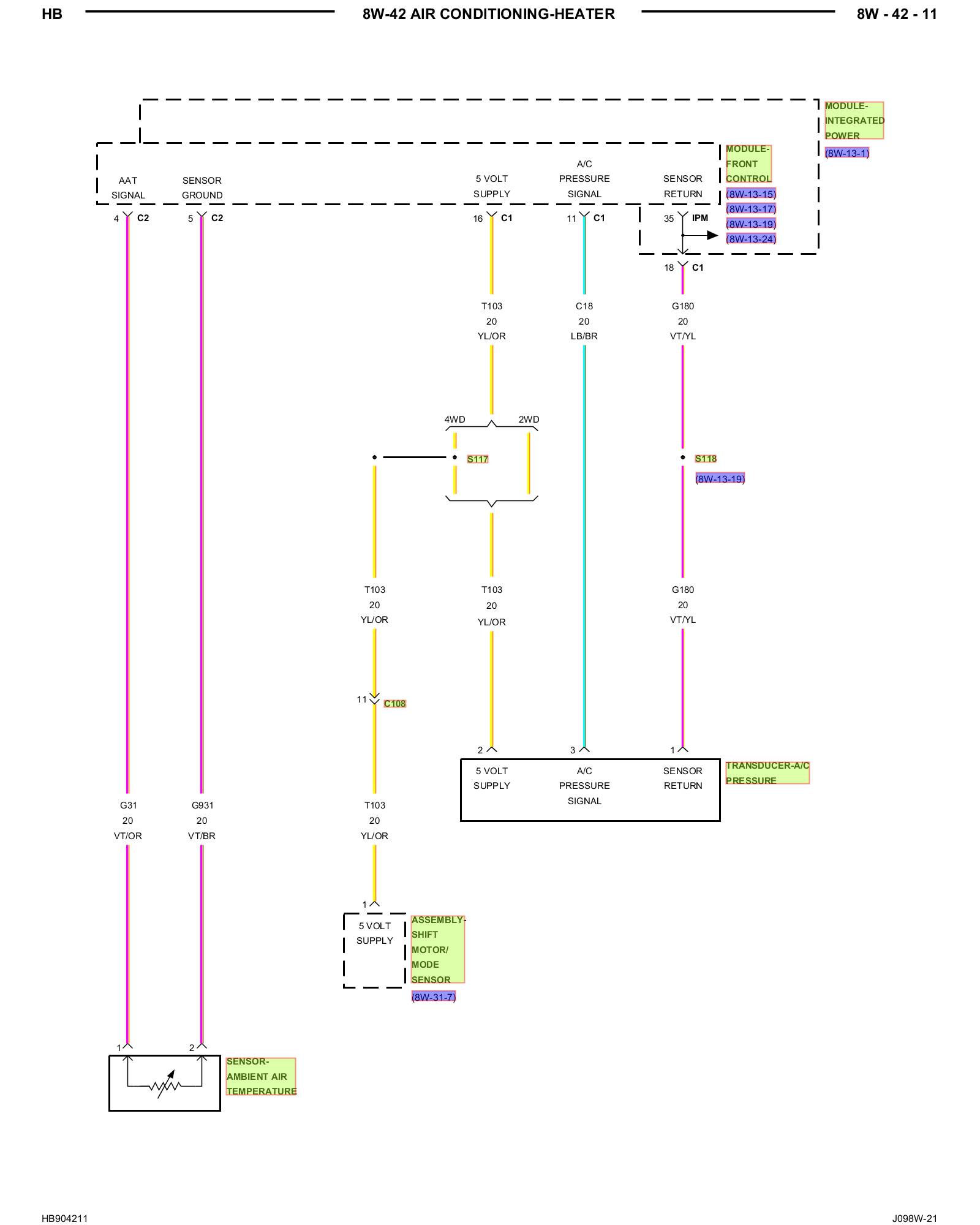

Air Conditioning 8W-42-11:

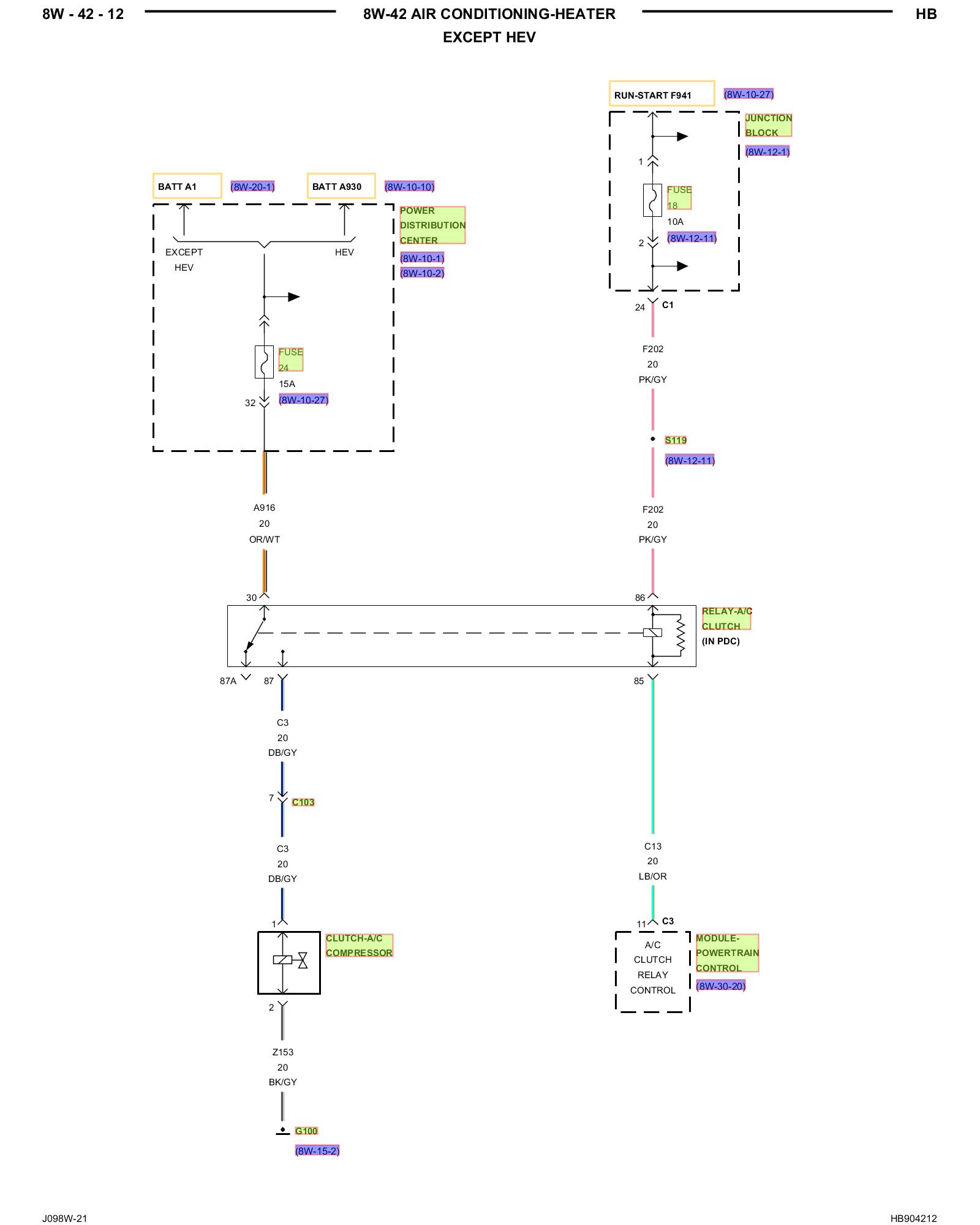

Air Conditioning 8W-42-12 (Except HEV):

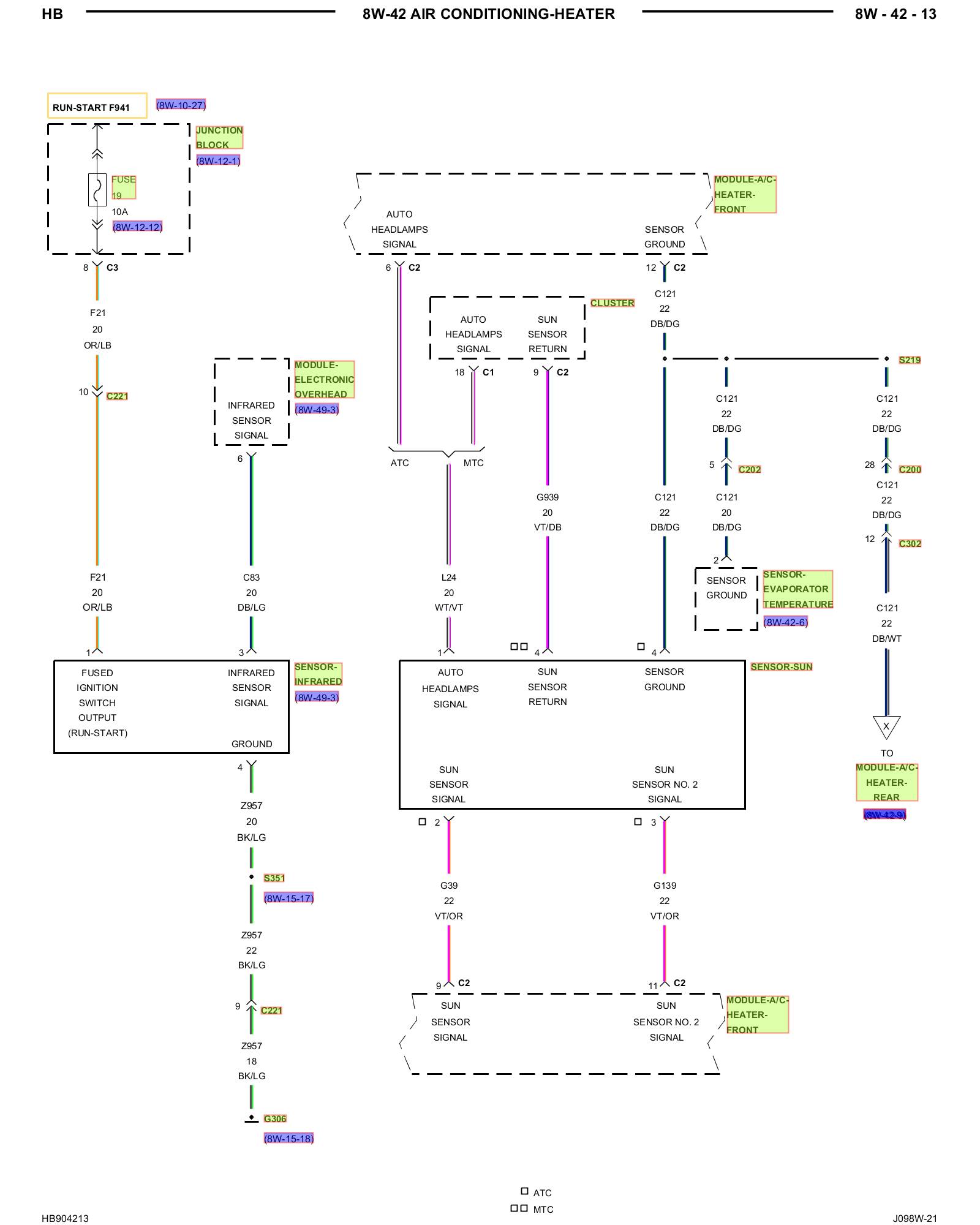

Air Conditioning 8W-42-13:

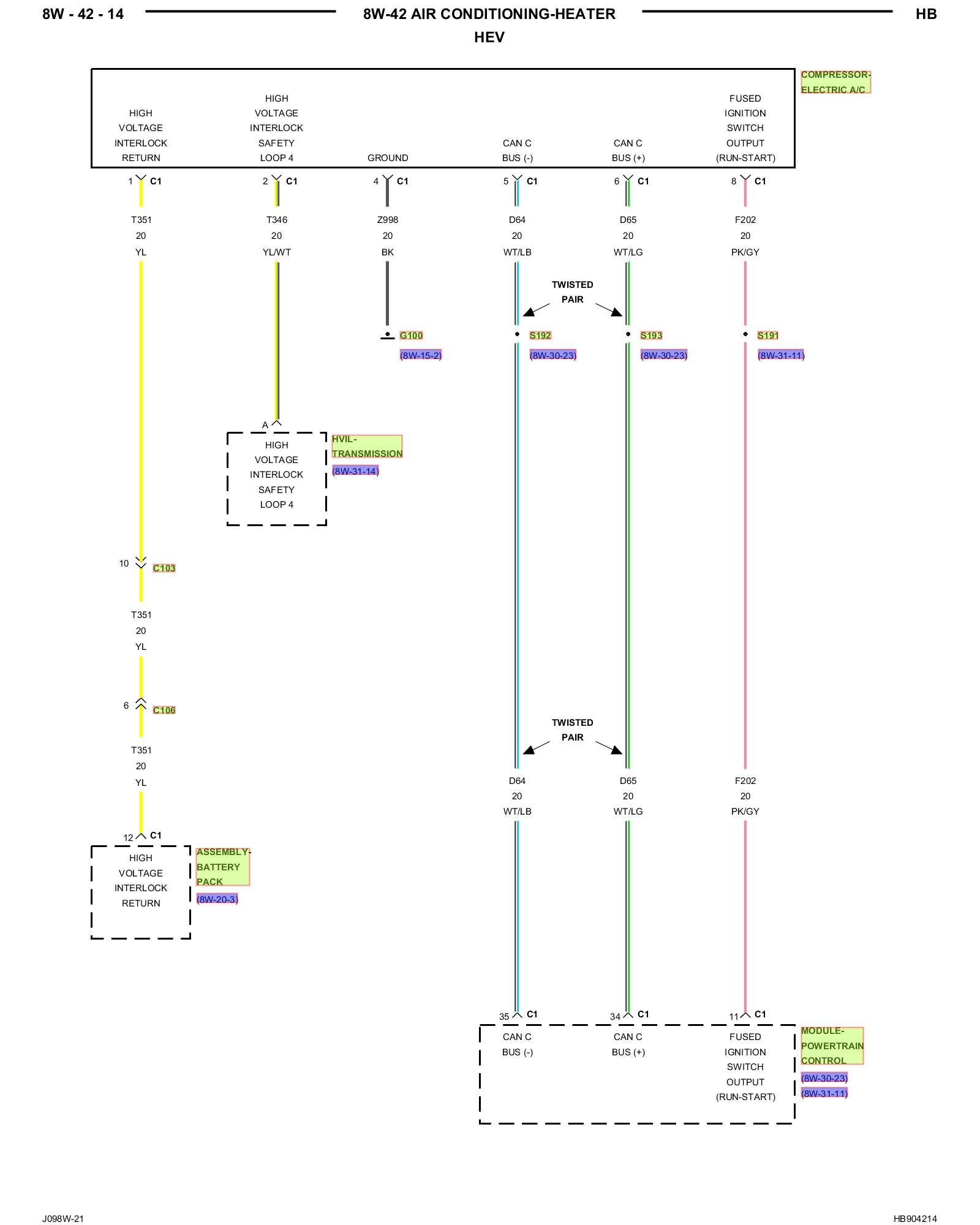

Air Conditioning 8W-42-14 (HEV):

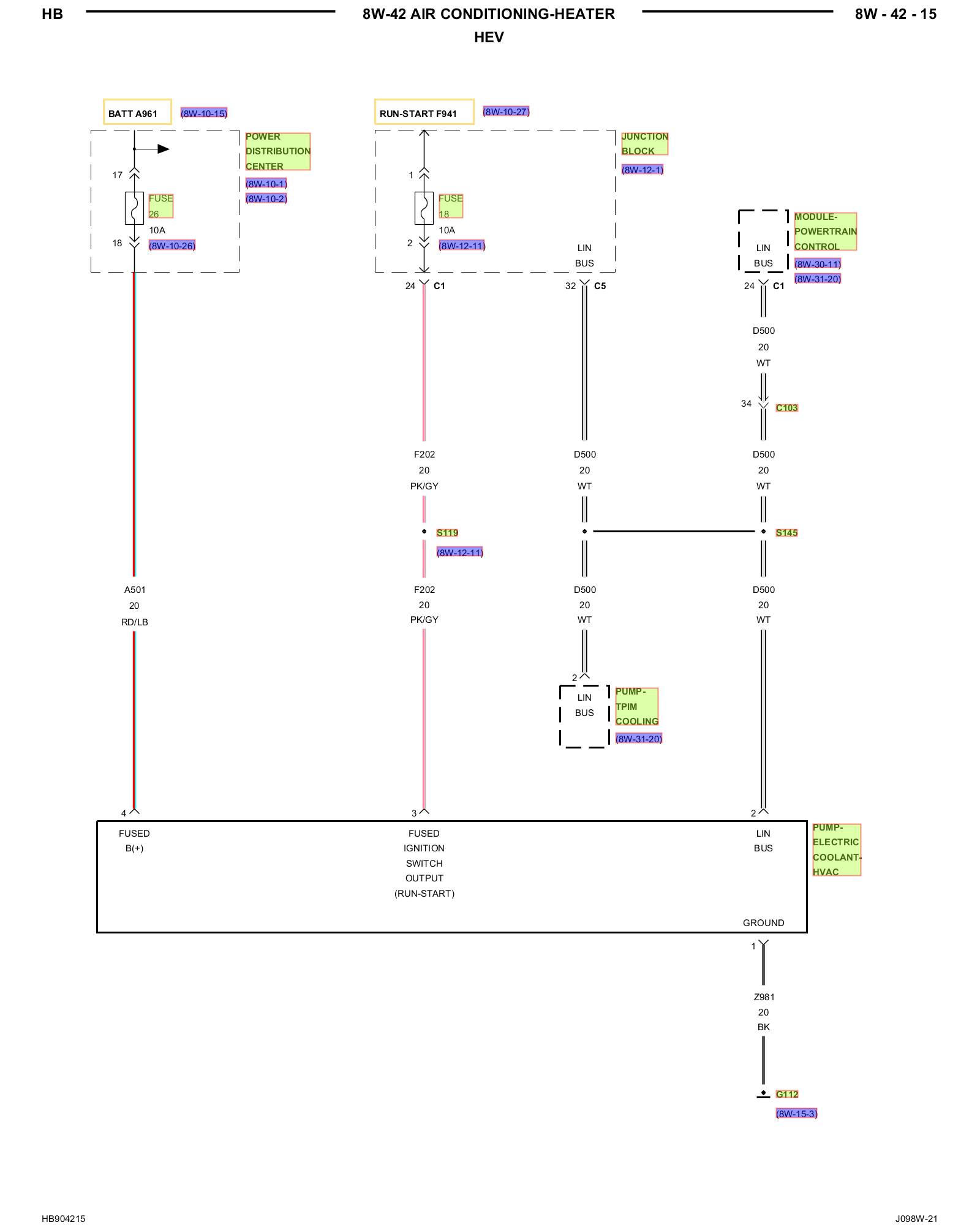

Air Conditioning 8W-42-15 (HEV):

Other Diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number Diagrams By Number
