Antilock Brakes / Traction Control Systems

ALL WHEEL ANTILOCK BRAKES - Diagrams
PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

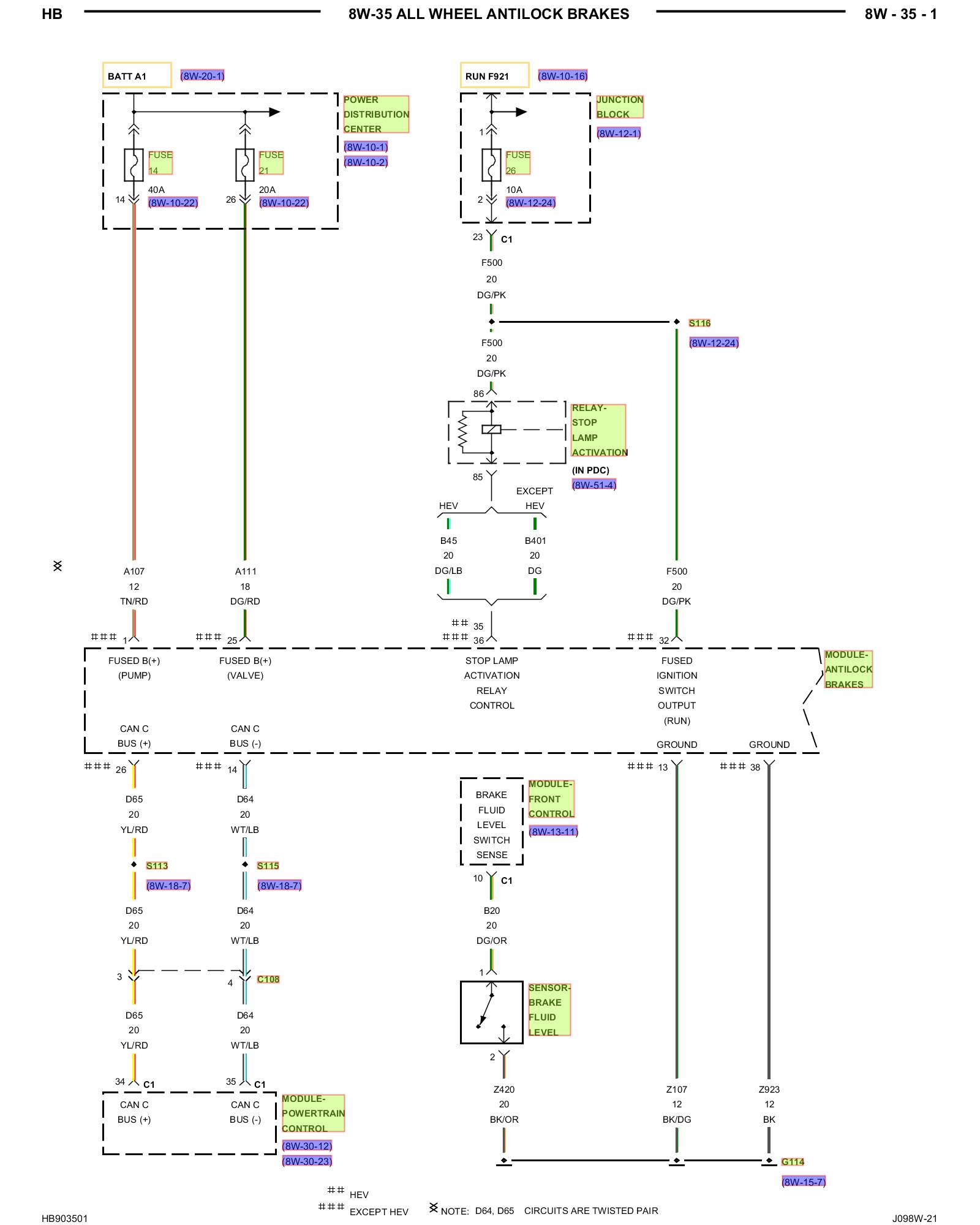

All Wheel Antilock Brakes 8W-35-01:

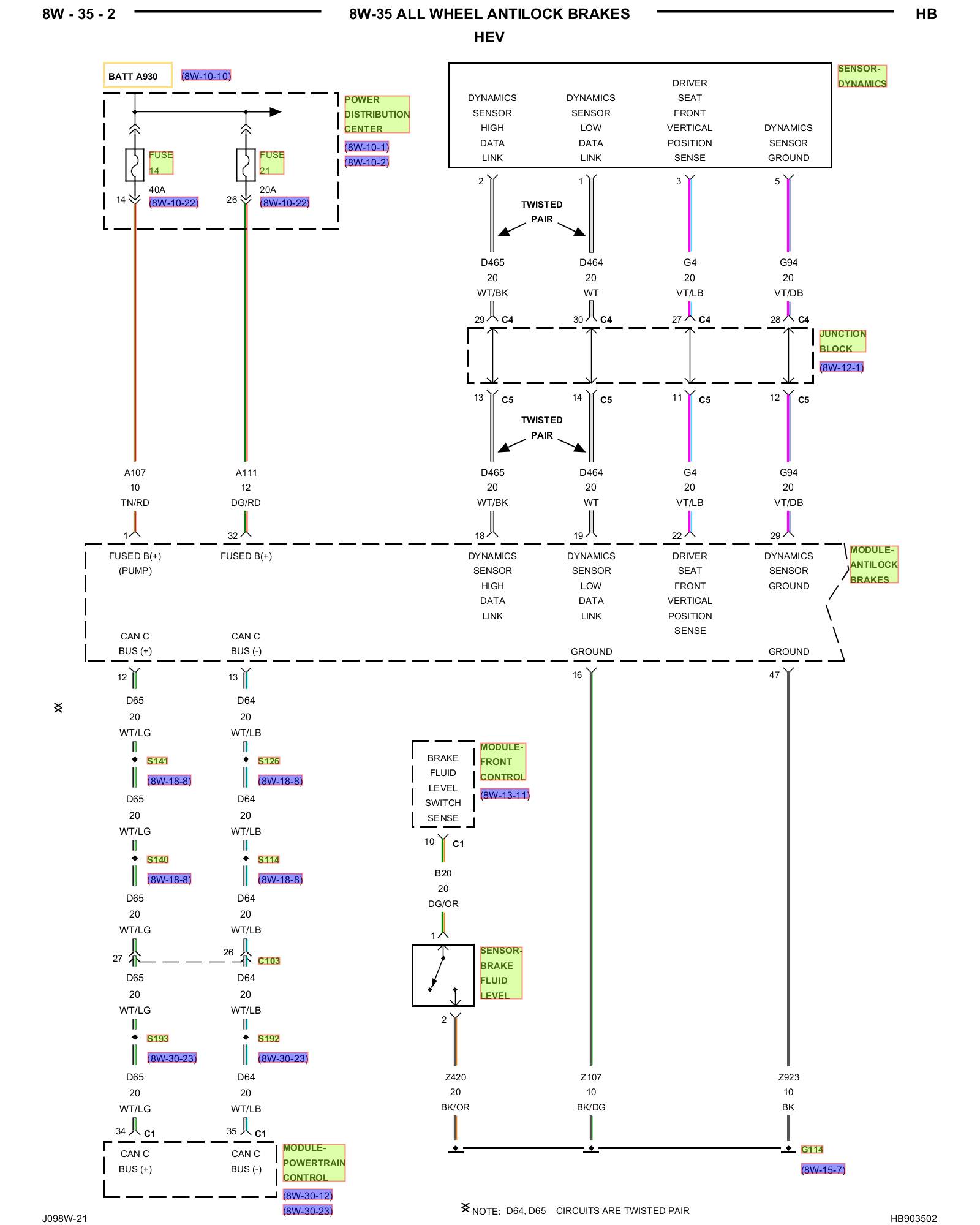

All Wheel Antilock Brakes 8W-35-02 (HEV):

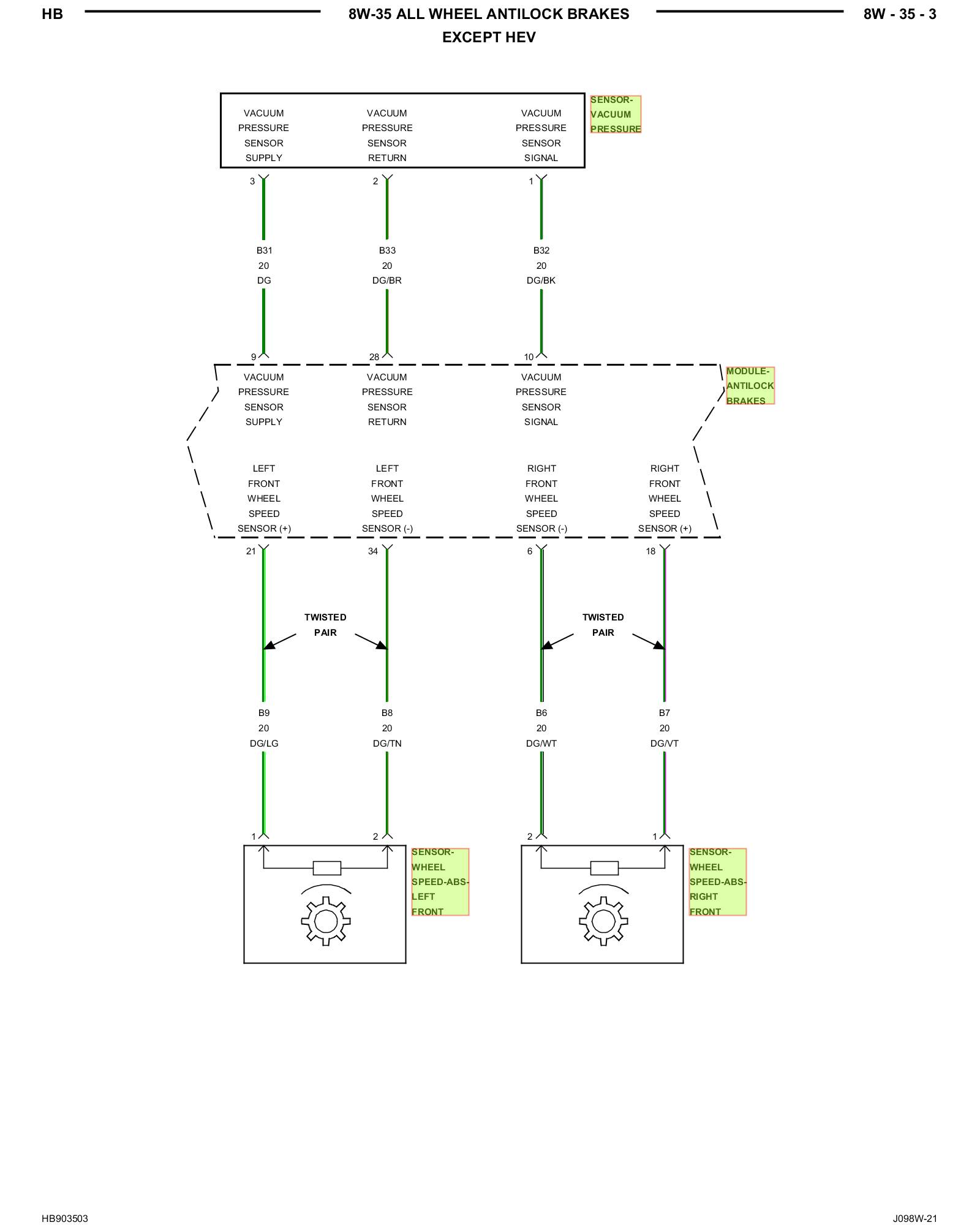

All Wheel Antilock Brakes 8W-35-03 (Except HEV):

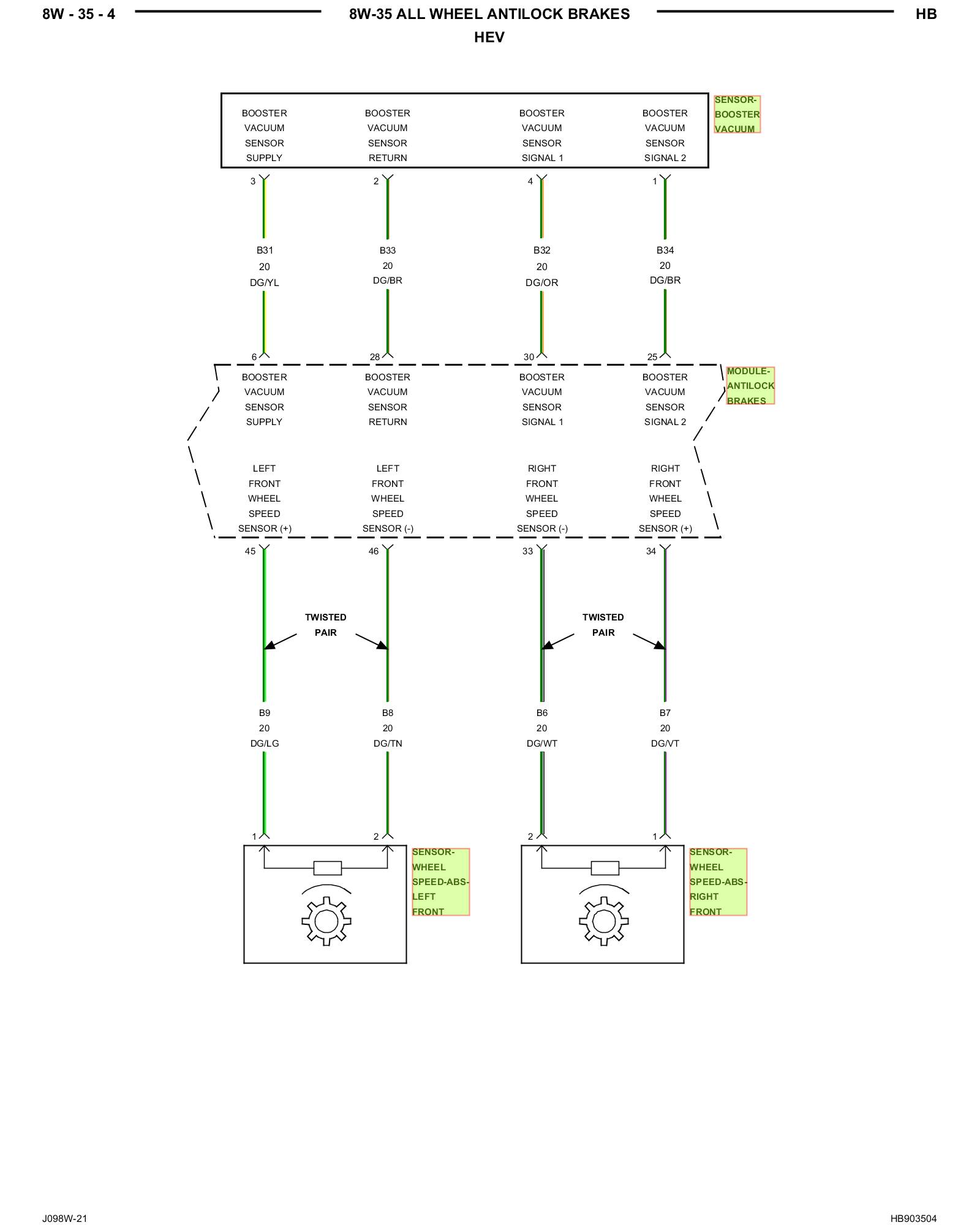

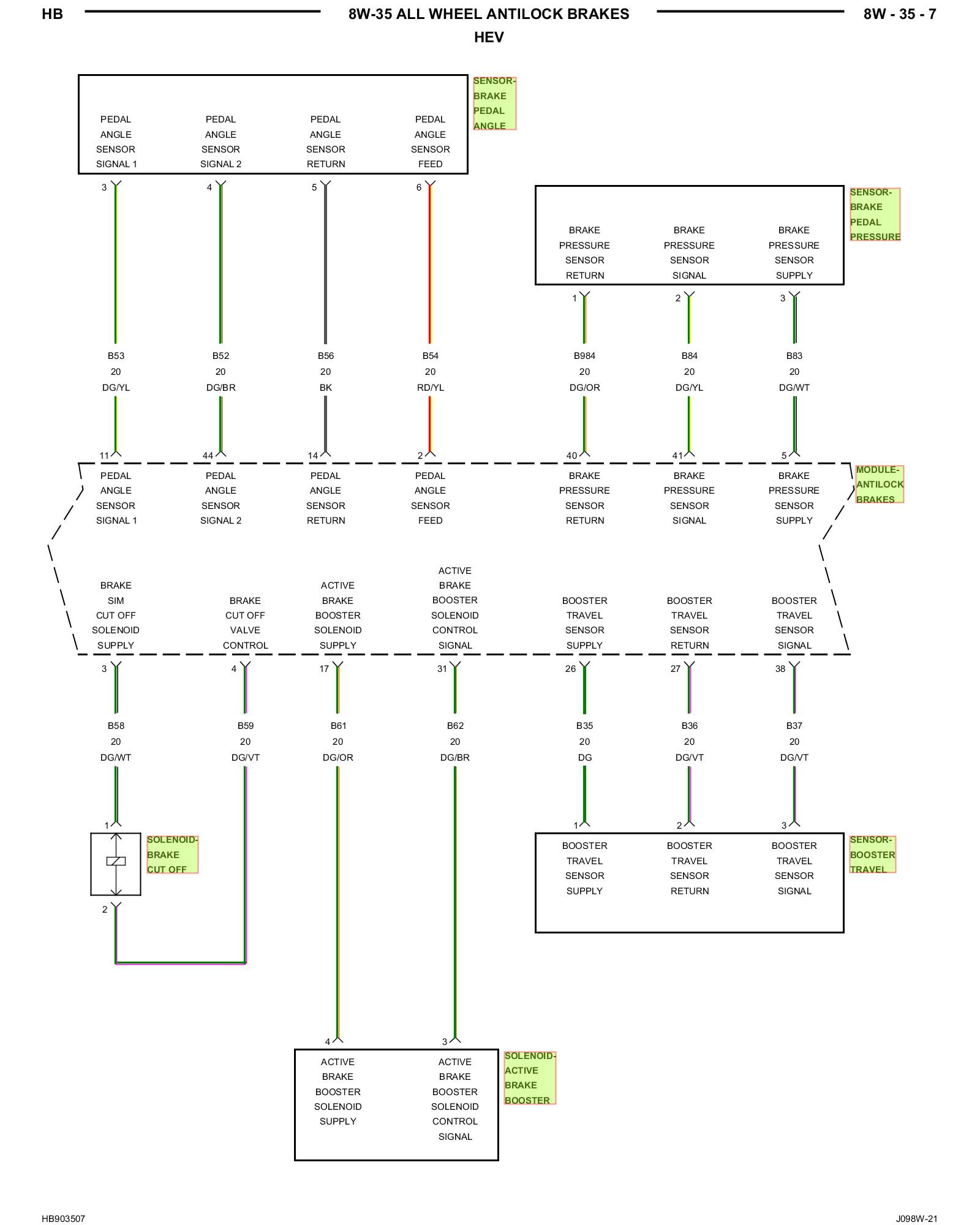

All Wheel Antilock Brakes 8W-35-04 (HEV):

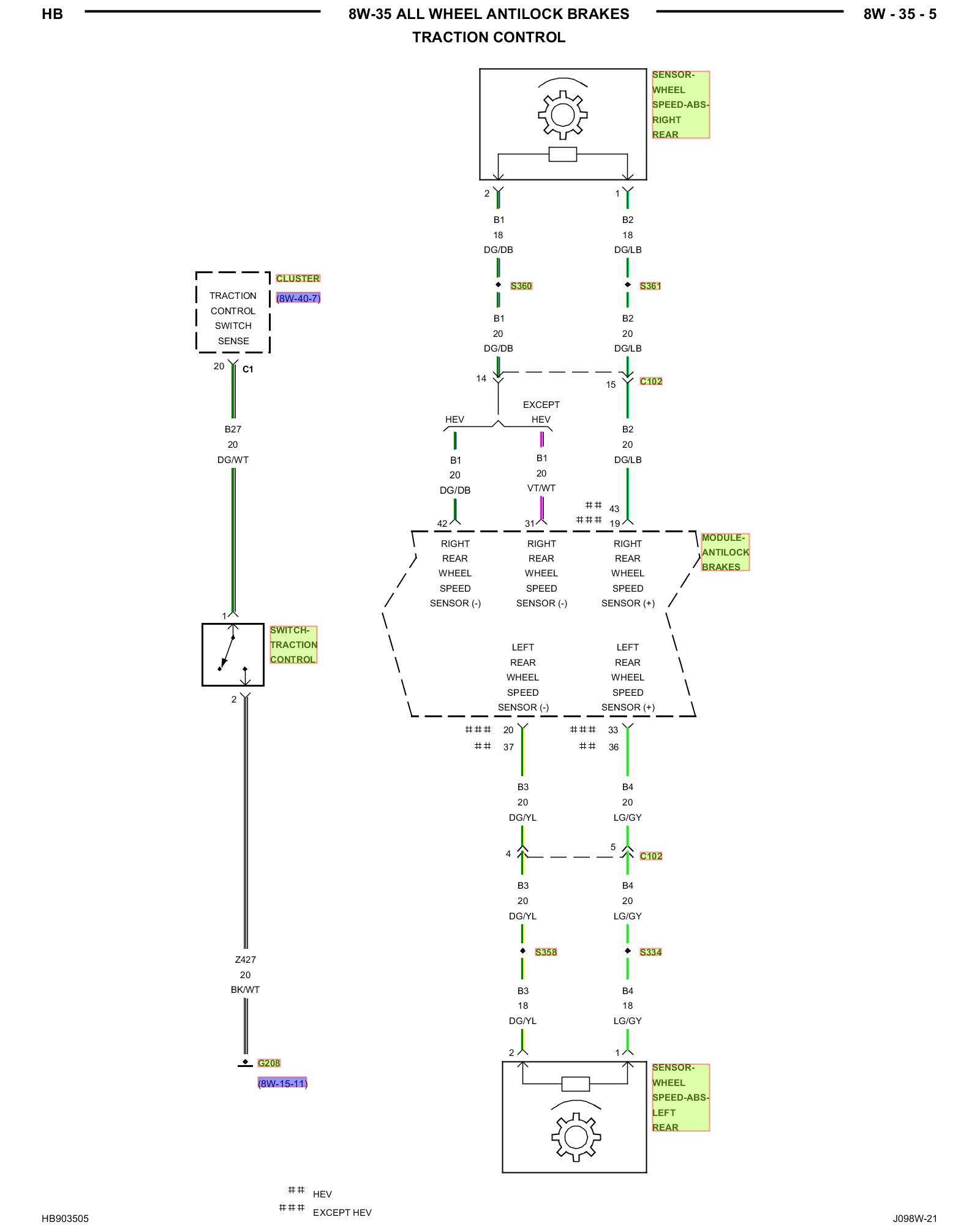

All Wheel Antilock Brakes 8W-35-05 (Traction Control):

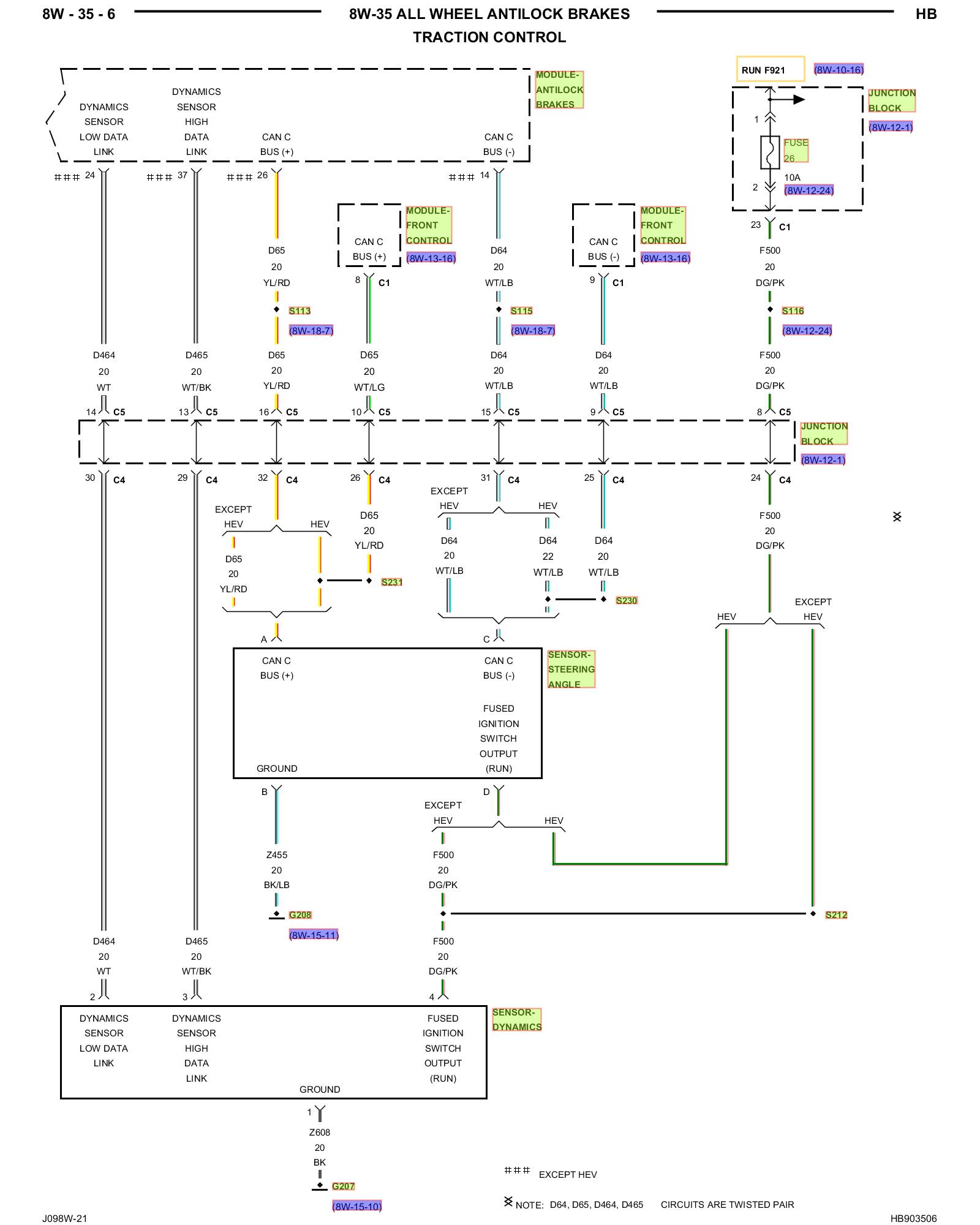

All Wheel Antilock Brakes 8W-35-06 (Traction Control):

All Wheel Antilock Brakes 8W-35-07 (HEV):

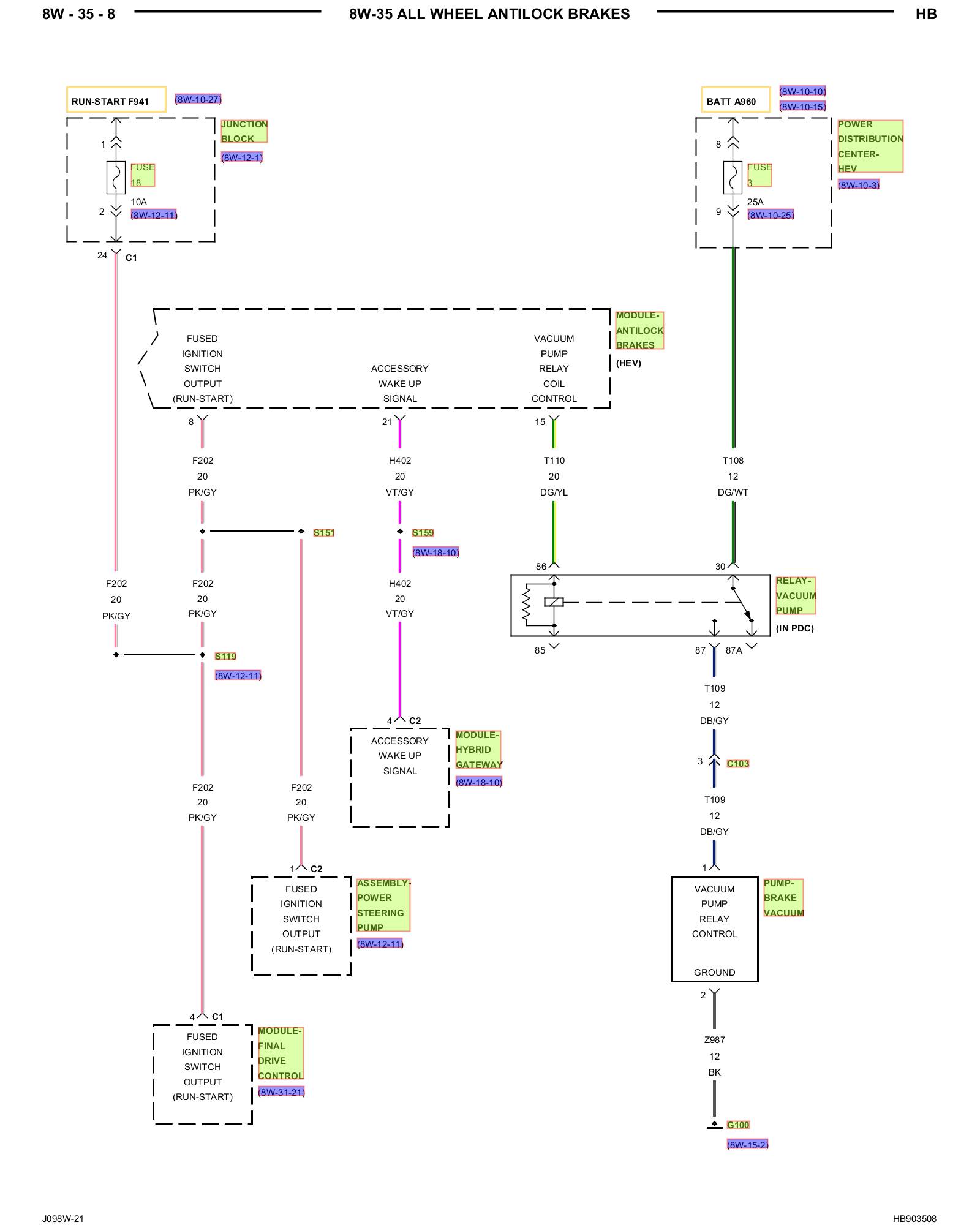

All Wheel Antilock Brakes 8W-35-08:

Other Diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number Diagrams By Number
