Dodge and Ram
>>
2009
>>
Durango 4WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Switch
>>
Driver Seat Switch (Left Seat) 11 Way
Driver Seat Switch (Left Seat) 11 Way

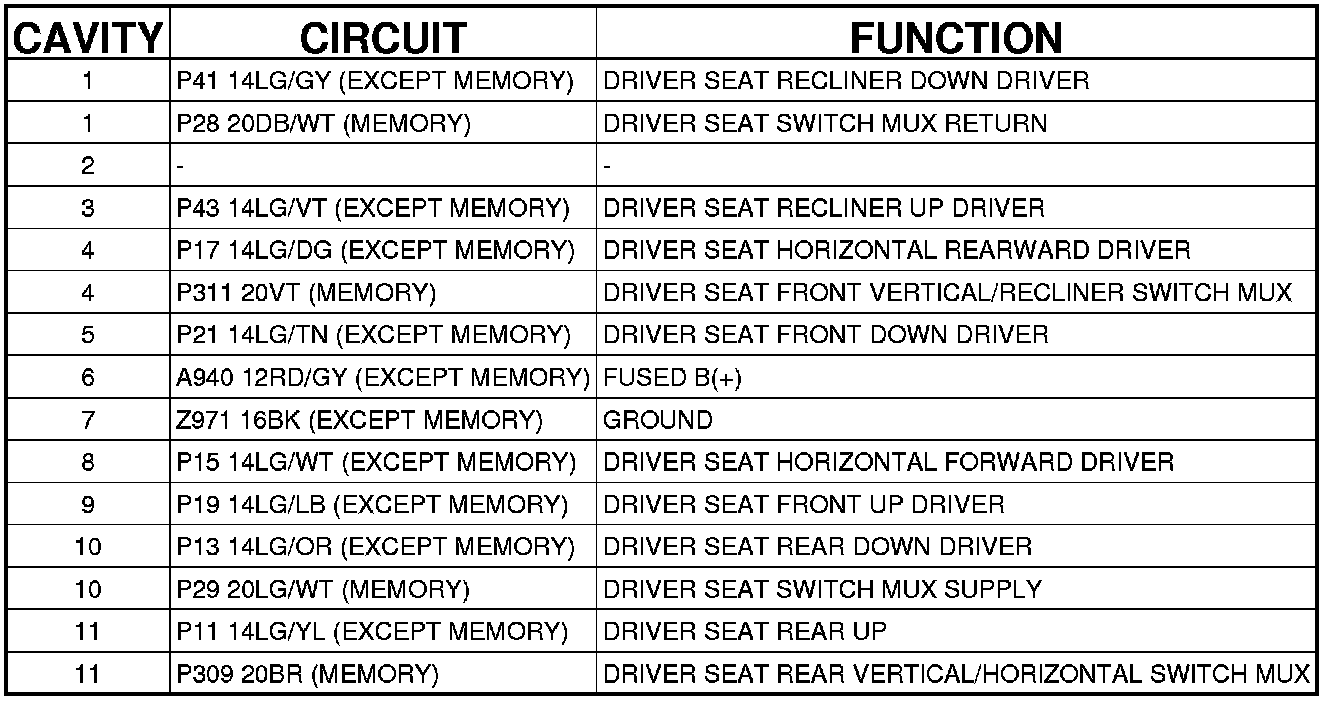

Connector - (LEFT SEAT) 11 WAY
SWITCH-SEAT-DRIVER - (LEFT SEAT) 11 WAY
