Power Distribution Center C3 (Hard Wired) 41 Way
Power Distribution Center C3 (Hard Wired) 41 Way

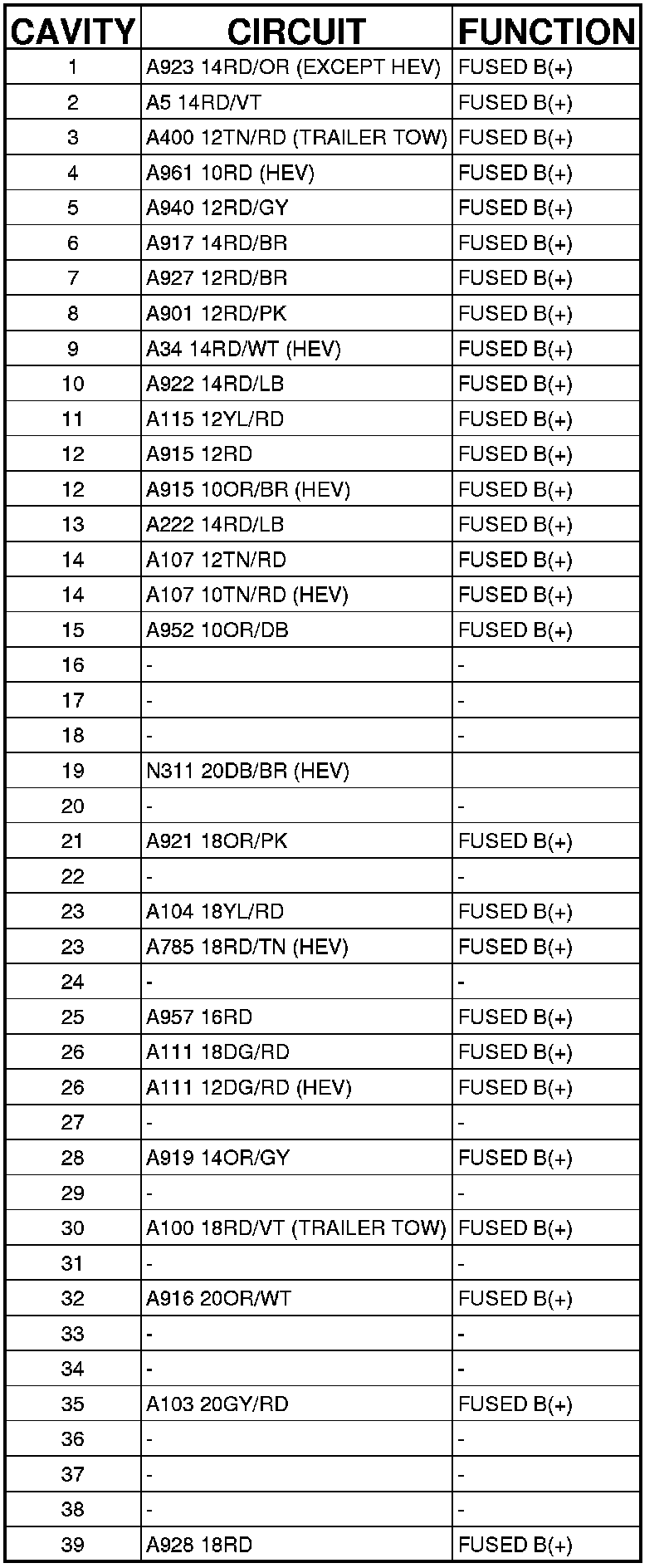

Connector C3 - (HARD WIRED) 41 WAY
POWER DISTRIBUTION CENTER - (HARD WIRED) 41 WAY
