Home
>>
Dodge and Ram
>>
2009
>>
Durango 4WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Switch
Power Mirror Switch

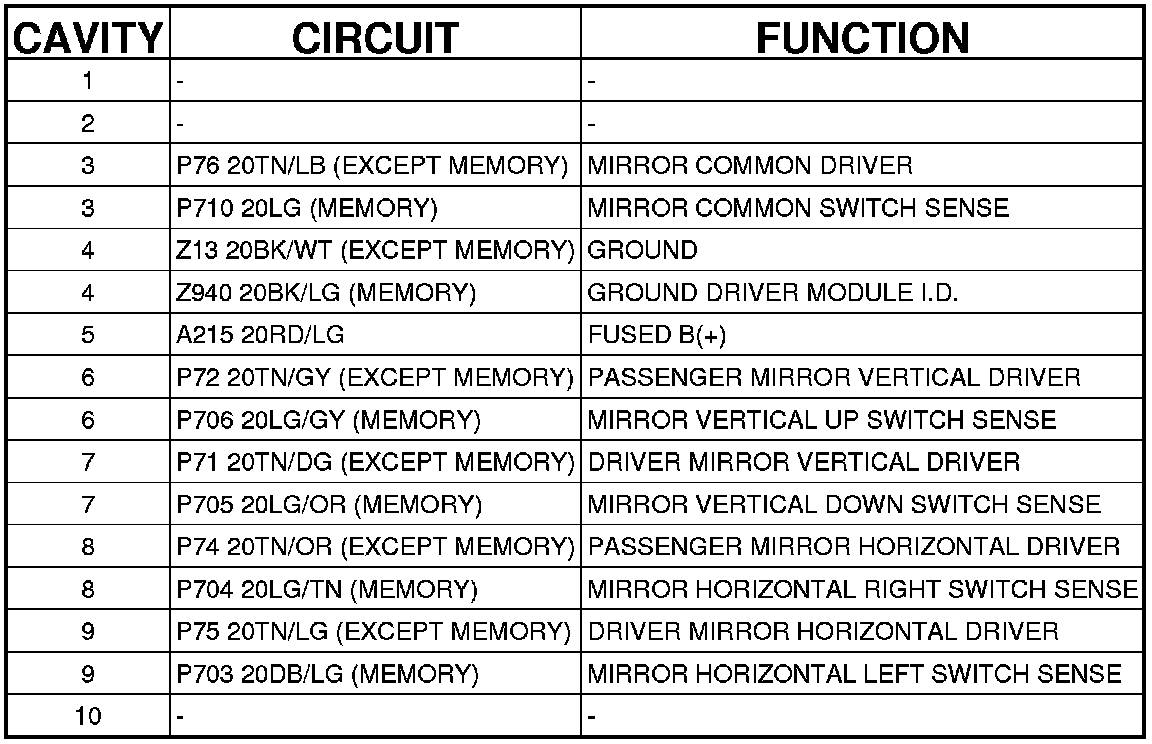

Connector - (LEFT FRONT DOOR) 10 WAY
SWITCH-MIRROR - (LEFT FRONT DOOR) 10 WAY
