Cluster C3 (Instrument Panel) 26 Way
Cluster C3 (Instrument Panel) 26 Way

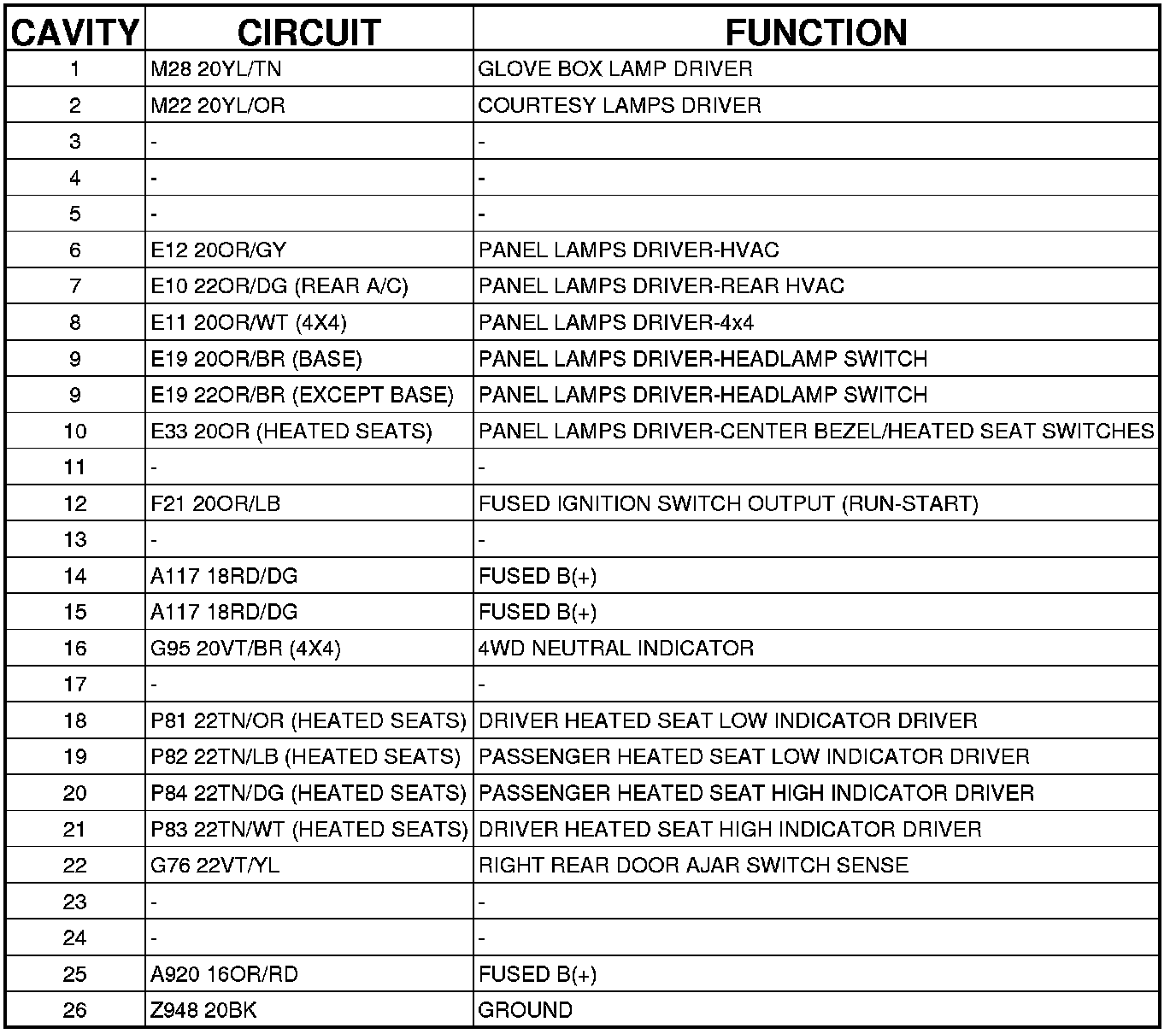

Connector C3 - (INSTRUMENT PANEL) 26 WAY
CLUSTER - (INSTRUMENT PANEL) 26 WAY
