Cluster C2 (Instrument Panel) 16 Way

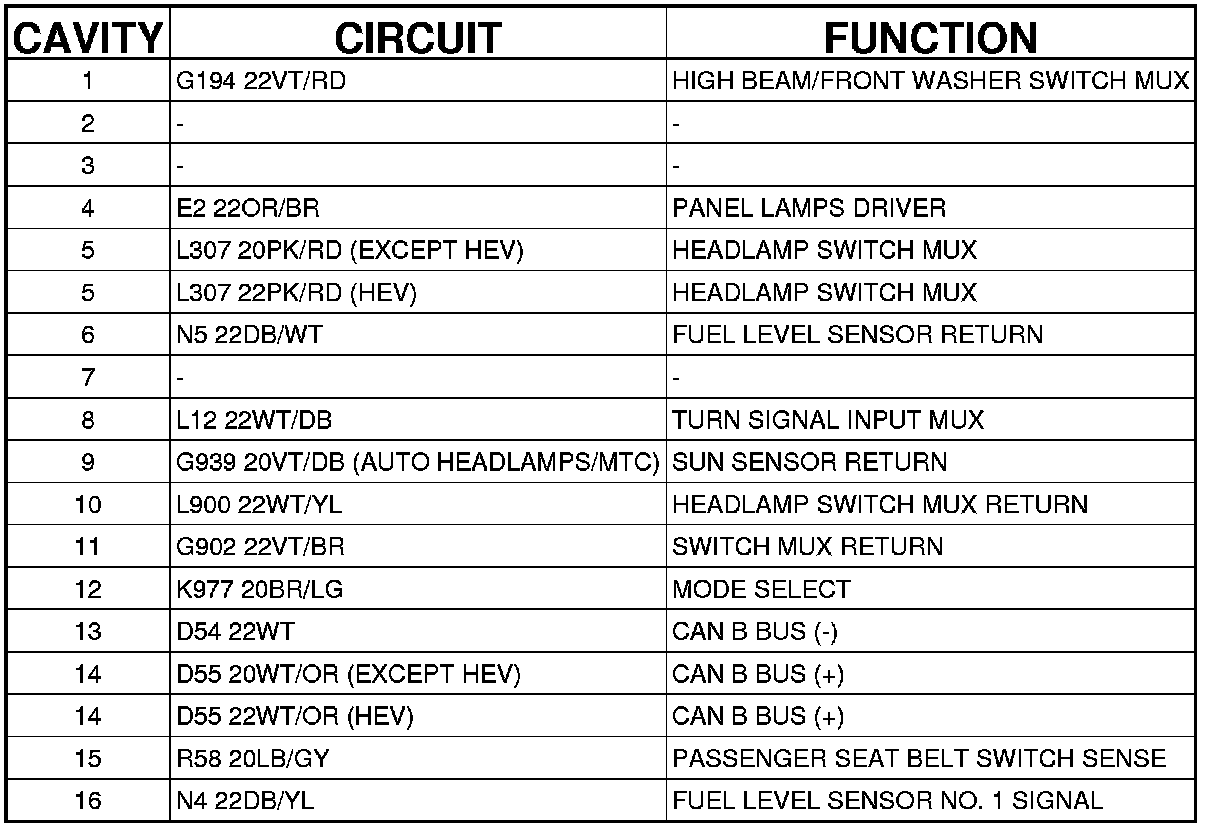

Connector C2 - (INSTRUMENT PANEL) 16 WAY




CLUSTER - (INSTRUMENT PANEL) 16 WAY
